Laminated Tubes

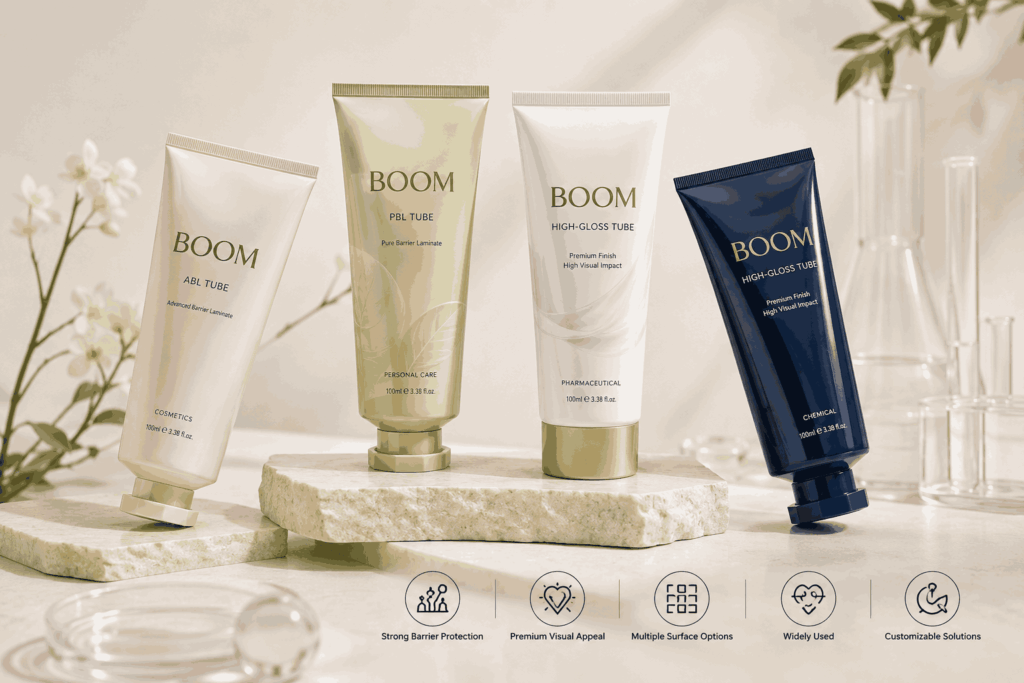

Boom Company specializes in high-quality laminated tube packaging solutions, offering ABL, PBL, and high-gloss surface tubes widely used in cosmetics, personal care, pharmaceuticals, food and chemical industries. Our laminated tubes combine strong barrier protection with premium visual appeal, helping brands enhance product value and shelf presence.





Sheet Structure and Thickness Display Table
Based on three structural diagrams: hierarchy/quality order + relative thickness percentage (measured in micrometers).

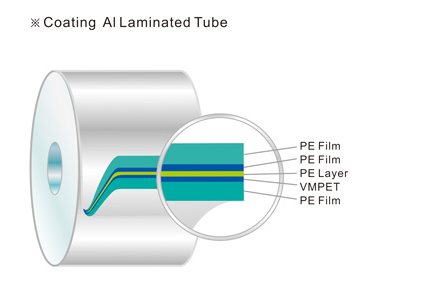

Coating AI Laminated Tube

PE Film outer layer
30%

PE Film
7%

PE Layer
5%

VMPET barrier layer
6%

PE Film Inner Layer
52%
PET/VMPET high-gloss barrier structure

Outer Layer
Inner Layer

Coating AI Laminated Tube

PE Film outer layer
34%

PE Film
8%

PE Layer
14%

VMPET barrier layer
8%

PE Film Inner Layer
36%
PET/VMPET high-gloss barrier structure

Outer Layer
Inner Layer

Coating AI Laminated Tube

PE Film outer layer
34%

PE Film
8%

PE Layer
8%

VMPET barrier layer
8%

PE Film Inner Layer
4 2%
PET/VMPET high-gloss barrier structure

Outer Layer
Inner Layer
Standard laminate thickness options (μm): 220, 250, 270, 300, 310, and 400. Custom thicknesses are available upon request.

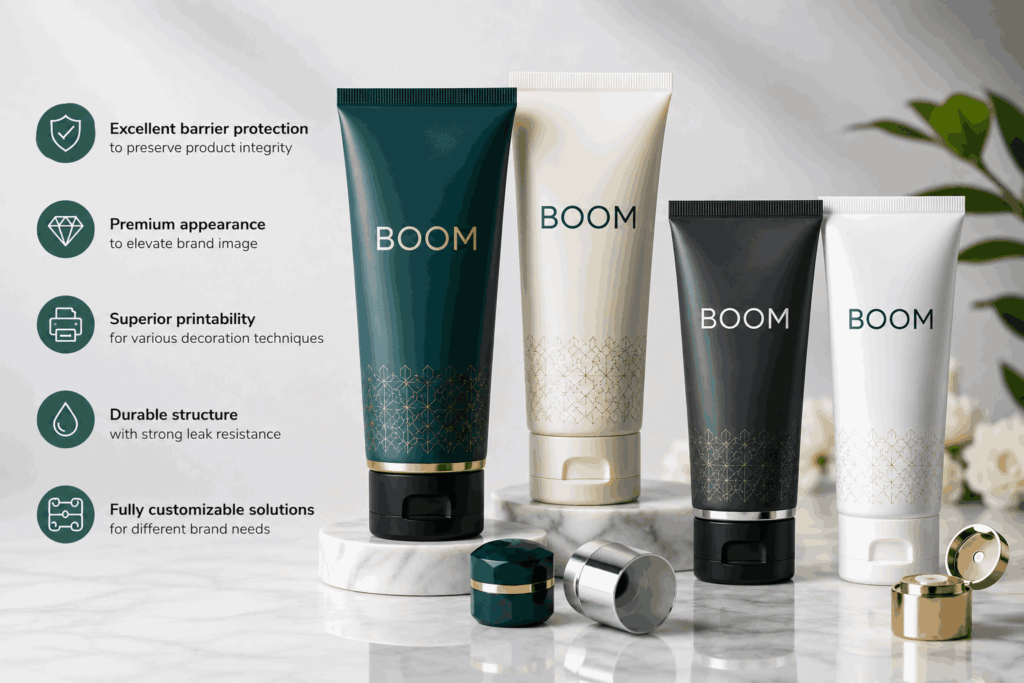

Key Advantages
With a stable structure and excellent flexibility, laminated tubes effectively protect contents from air, moisture, and external contamination, extending product shelf life.
We also provide full customization in sizes, printing, surface finishes, and cap styles to meet diverse premium packaging requirements.

Excellent barrier protection to preserve product integrity

Premium appearance to elevate brand image

Superior printability for various decoration techniques

Durable structure with strong leak resistance

Fully customizable solutions for different brand needs
Tube Diameter / Body Length / Capacity Chart
Tube DiaFirst select the tube diameter ©DD. Westgate capacity mL, then the tube length mm.meter / Body Length / Capacity Chart

11 Pipe diameter mm
| ml | mm | |
| 1 | —— | 51 |
| 3 | —— | 61 |
| 5 | —— | 71 |

13 Pipe diameter mm
| ml | mm | |
| 1 | ———— | 40 |
| 3 | ———— | 51 |
| 5 | ———— | 65 |

16 Pipe diameter mm
| ml | mm | |
| 3 | ———— | 43 |
| 5 | ———— | 55 |
| 10 | ———— | 80 |

19 Pipe diameter mm
| ml | mm | |
| 10 | ———— | 66 |
| 15 | ———— | 85 |
| 20 | ———— | 100 |
| 25 | ———— | 110 |

22 Pipe diameter mm
| ml | mm | |
| 10 | ———— | 60 |
| 15 | ———— | 72 |
| 20 | ———— | 85 |
| 25 | ———— | 100 |
| 30 | ———— | 110 |

25 Pipe diameter mm
| ml | mm | |
| 20 | ———— | 74 |
| 25 | ———— | 84 |
| 30 | ———— | 94 |
| 35 | ———— | 104 |
| 40 | ———— | 115 |
| 50 | ———— | 135 |
| 60 | ———— | 145 |

30 Pipe diameter mm
| ml | mm | |
| 1 | ———— | 40 |
| 3 | ———— | 51 |
| 5 | ———— | 65 |
| 3 | ———— | 51 |
| 5 | ———— | 65 |
| 3 | ———— | 51 |
| 5 | ———— | 65 |
| 3 | ———— | 51 |
| 5 | ———— | 65 |
| 3 | ———— | 51 |
| 5 | ———— | 65 |
| 3 | ———— | 51 |
| 5 | ———— | 65 |
| 3 | ———— | 51 |

35 Pipe diameter mm
| ml | mm | |
| 35 | ———— | 75 |
| 40 | ———— | 81 |
| 50 | ———— | 91 |
| 60 | ———— | 102 |
| 70 | ———— | 112 |
| 80 | ———— | 124 |
| 90 | ———— | 91 |
| 100 | ———— | 102 |
| 110 | ———— | 112 |

38 Pipe diameter mm
| ml | mm | |
| 60 | ———— | 90 |
| 70 | ———— | 100 |
| 80 | ———— | 110 |
| 90 | ———— | 120 |
| 100 | ———— | 130 |
| 110 | ———— | 145 |
| 120 | ———— | 155 |
| 130 | ———— | 164 |
| 140 | ———— | 173 |
| 150 | ———— | 181 |

40 Pipe diameter mm
| ml | mm | |
| 70 | ———— | 98 |
| 80 | ———— | 106 |
| 90 | ———— | 114 |
| 100 | ———— | 122 |
| 110 | ———— | 128 |
| 120 | ———— | 137 |
| 130 | ———— | 145 |
| 140 | ———— | 154 |
| 150 | ———— | 162 |
| 160 | ———— | 170 |
| 170 | ———— | 178 |
| 180 | ———— | 186 |

45 Pipe diameter mm
| ml | mm | |
| 90 | ———— | 86 |
| 100 | ———— | 95 |
| 110 | ———— | 102 |
| 120 | ———— | 110 |
| 130 | ———— | 115 |
| 140 | ———— | 126 |
| 150 | ———— | 134 |
| 160 | ———— | 142 |
| 170 | ———— | 150 |
| 180 | ———— | 158 |
| 190 | ———— | 164 |
| 200 | ———— | 172 |
| 210 | ———— | 180 |
| 220 | ———— | 190 |

50 Pipe diameter mm
| ml | mm | |
| 130 | ———— | 110 |
| 140 | ———— | 118 |
| 150 | ———— | 120 |
| 160 | ———— | 130 |
| 170 | ———— | 137 |
| 180 | ———— | 143 |
| 190 | ———— | 149 |
| 200 | ———— | 156 |
| 210 | ———— | 164 |
| 220 | ———— | 170 |
| 230 | ———— | 175 |
| 240 | ———— | 180 |
| 250 | ———— | 185 |

55 Pipe diameter mm
| ml | mm | |
| 150 | ———— | 100 |
| 160 | ———— | 105 |
| 170 | ———— | 110 |
| 180 | ———— | 115 |
| 190 | ———— | 120 |
| 200 | ———— | 124 |
| 210 | ———— | 127 |
| 220 | ———— | 130 |
| 230 | ———— | 137 |
| 240 | ———— | 143 |
| 250 | ———— | 149 |
| 300 | ———— | 173 |
| 350 | ———— | 195 |
| 400 | ———— | 218 |

60 Pipe diameter mm
| ml | mm | |
| 200 | ———— | 108 |
| 210 | ———— | 115 |
| 220 | ———— | 120 |
| 230 | ———— | 125 |
| 240 | ———— | 130 |
| 250 | ———— | 135 |
| 300 | ———— | 150 |
| 350 | ———— | 162 |
| 400 | ———— | 175 |
| 450 | ———— | 190 |
| 500 | ———— | 225 |
Product Advantages

8-Color Offset Printing
Multi-color high-precision printing for rich graphics and layered visuals Advantage: stable color / sharp details / mass production consistency

Silkscreen Printing
Ink is directly applied to the tube surface for bold visual impact Advantage: strong color / high adhesion / abrasion resistance

Hot Stamping (Gold / Silver / Rainbow)
Metallic foil transfer process for a premium packaging appearance Advantage: premium look / strong recognition / brand enhancement

Reverse UV Coating
Gloss and matte contrast to highlight design depth and key elements Advantage: visual depth / focus highlighting / refined finish

Matte Coating
Smooth matte surface finish for a soft premium appearance Advantage: elegant look / anti-fingerprint / minimalist style

Frosted Finish
Fine frosted texture for a unique tactile and visual effect Advantage: premium touch / strong differentiation / unique look

Glossy Coating
High-gloss surface finish for brighter and more vivid colors Advantage: strong impact / vibrant color / enhanced appeal

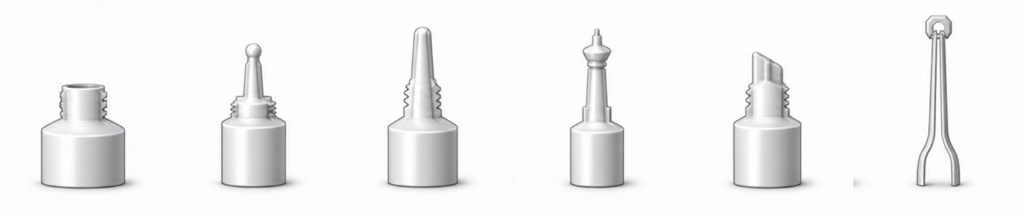

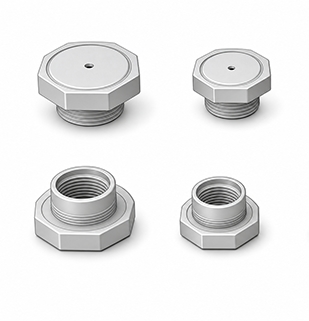

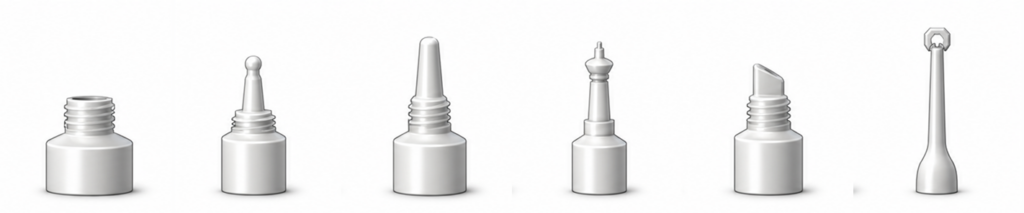

Shoulder Type
Appearance Display

Internal Structure Display

Special threads and matching caps can be custom molded; tube shoulder injection can also be developed based on specific requirements.

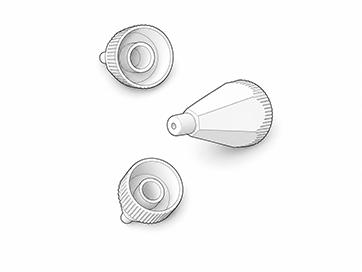

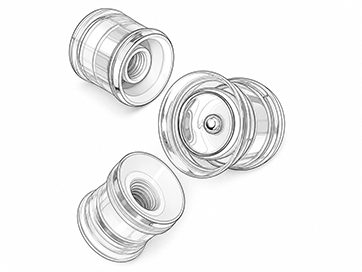

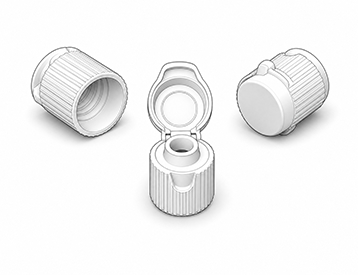

Cap Type

Octagonal Cap

Doctor Cap

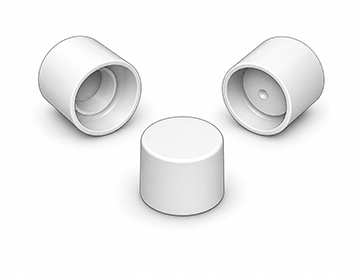

Flat Cap (Glossy Finish)

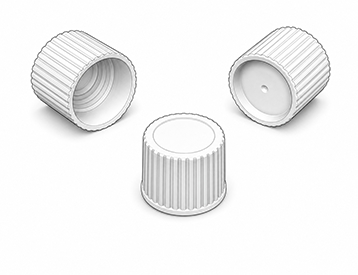

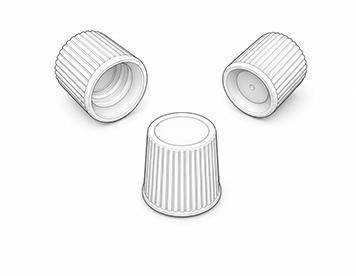

Ribbed Cap

Aint Tube Cap

Paint Tube Cap

Crew Cap

Acrylic Cap

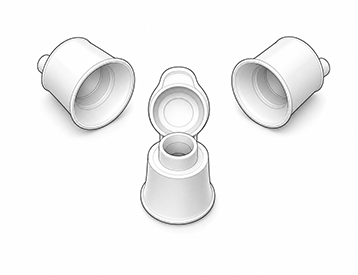

Flip-top caps can be equipped with a positioning function. Please contact us for details.
Tube Body Type
Various cap types, flip caps can be positioned.

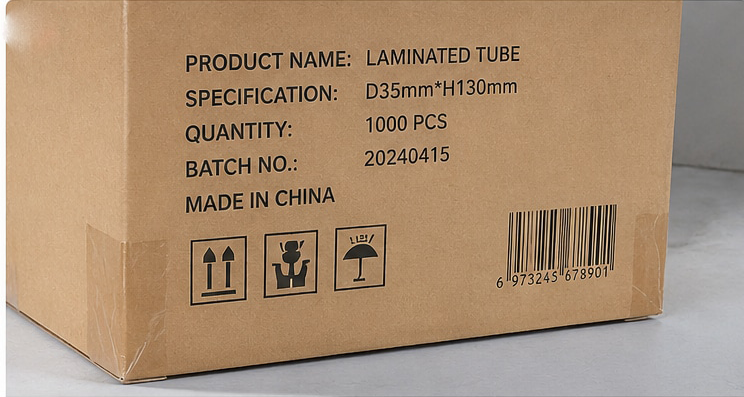

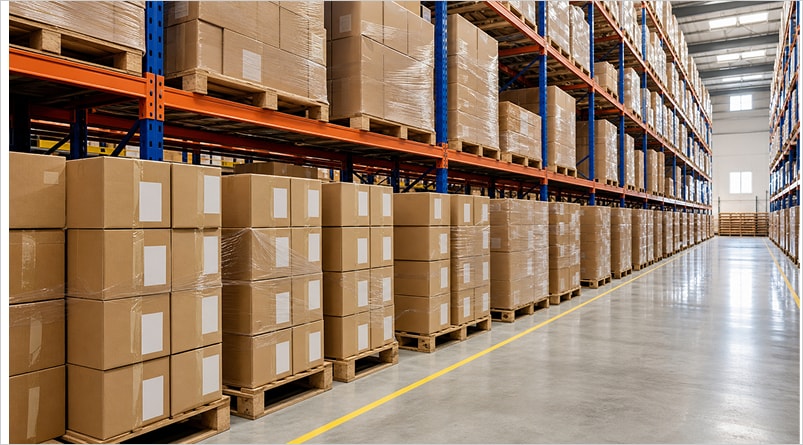

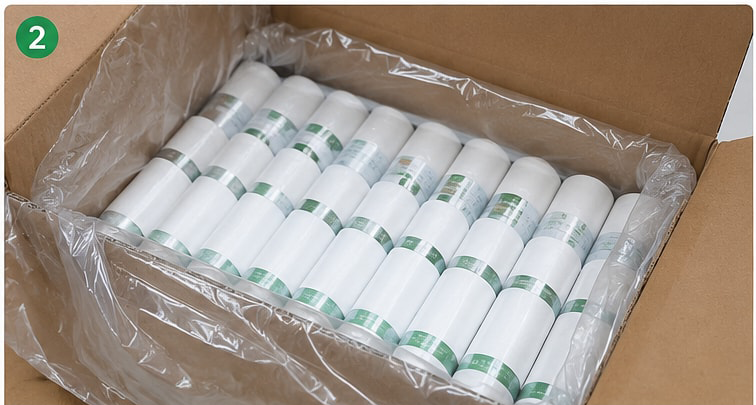

Packaging

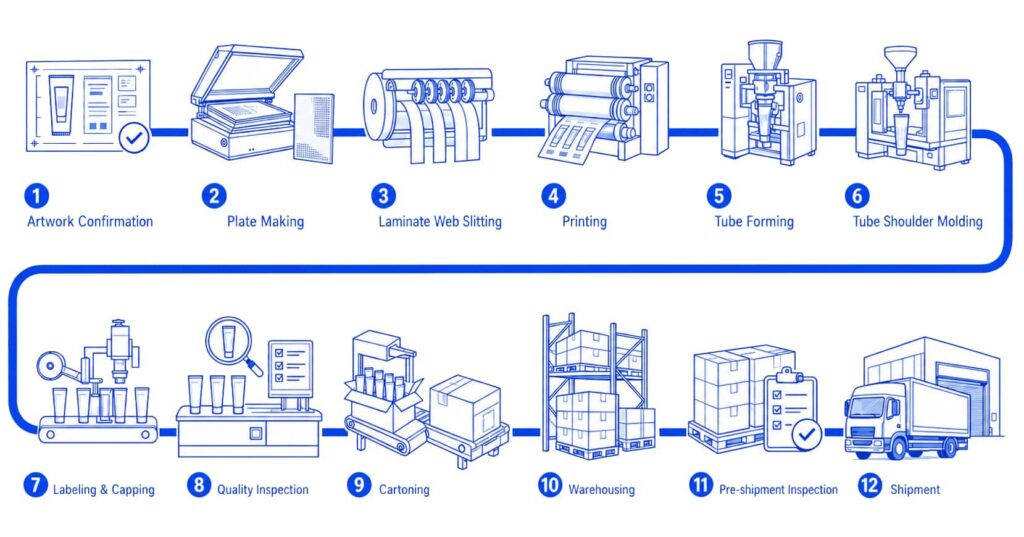

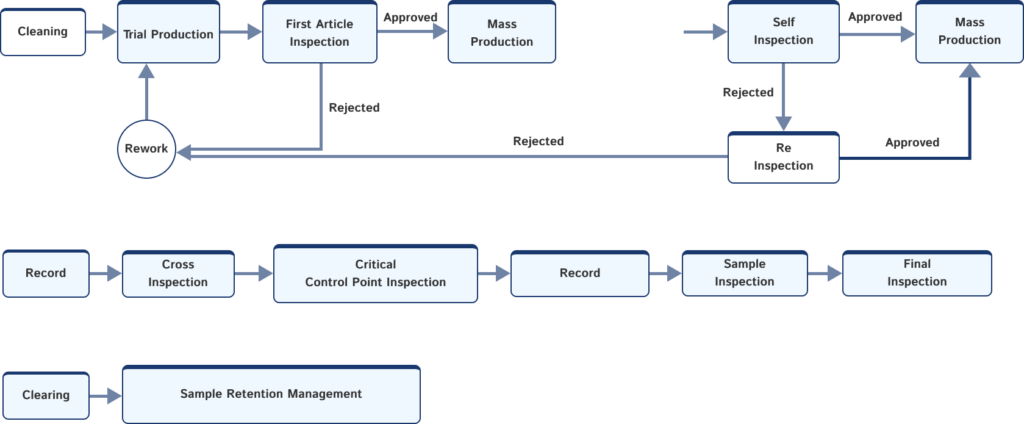

Production Flow Chart

Production Flow Chart

We implement an advanced quality management system and rigorous inspection procedures to ensure consistent product quality.
Our in-process quality control system includes:
First Article Inspection (FAI)
Self-Inspection
Cross-Inspection (Peer Inspection)
Critical Control Point (CCP) Inspection
Type Inspection
The Quality Control (QC) team is responsible for implementing first article inspections, conducting routine in-process inspections, and performing inspections at critical control points throughout production.In addition, QC conducts sampling inspections and testing every two hours to maintain process consistency and product quality.
Production operators are responsible for conducting self-inspections and cross-inspections during manufacturing, as well as identifying and segregating any non-conforming products.
The Quality Assurance (QA) team performs on-site audits and monitors the entire production process to ensure compliance with quality requirements.
Product Showcase
Sed ut perspiciatis unde omnis iste natus errorSed ut perspiciatis unde omnis iste natus errorSed ut perspiciatis unde omnis iste natus errorSed ut perspiciatis unde omnis iste natus errorSed ut perspiciatis unde omnis iste natus errorSed ut perspiciatis

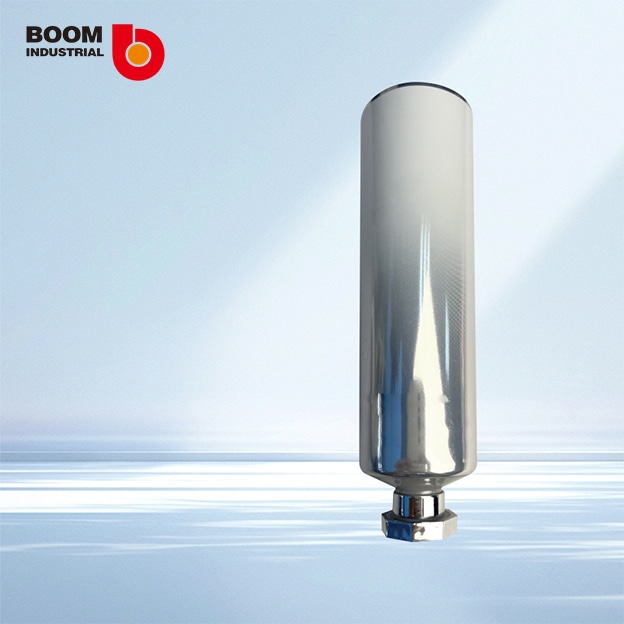

Shiny Tube

Tube Diameter: 35 mm
Capacity: 100 g
Material: Shiny Laminate
Printing: Offset Printing + Silver Hot Stamping + Silk Screen
Closure: Octagonal Cap

Shiny Tube
Tube Diameter: 19 mm
Material: Shiny Laminate Tube
Feature: Single Roller Ball Applicator

Shiny Tube
Tube Diameter: 19 mm
Material: Shiny Laminate Tube
Feature:Zinc Alloy Massage Applicator with Embossed Dots
ABL Tube

ABL Tube
Tube Diameter: 19 mm
Capacity: 20 g
Printing: Offset Printing
Decoration: Silver Hot Stamping
Closure: Eco-Friendly Lock Cap

ABL Tube
Tube Diameter: 10 mm
Capacity: 5 g
Printing: Offset Printing
Closure: Nozzle Cap

ABL Tube
Tube Diameter: 19 mm
Laminate Thickness: 250 μm
Material: White Laminate
Shoulder: Integrated Precision Nozzle
Closure: Electroplated Gold Trumpet Cap
PBL Tube

PBL Tube
Tube Diameter: 22 mm
Capacity: 20 g
Laminate Thickness: 300 μm
Material: Transparent Laminate
Printing: Offset Printing
Closure: Glossy Screw Cap
Application: Toothpaste Tube

PBL Tube
Tube Diameter: 35 mm
Capacity: 80-100 g
Printing: Offset Printing
Closure: Flip-top Cap

PBL Tube
Tube Diameter: 35 mm
Material: All Plastic Tube (PBL)
Decoration: Pearl Effect + Silver Hot Stamping
Closure: Glossy Screw Cap
Craftsmanship & Technology
Explore our manufacturing standards and custom capabilities. We are dedicated to providing connectivity solutions that exceed expectations.
Laminated Tubes Are Advanced, Multi-Layered Packaging Solutions Featuring High-Barrier Structures. They Are Specifically Engineered To Safeguard Your Product, Ensuring Formulation Stability And Preserving Its Overall Performance.

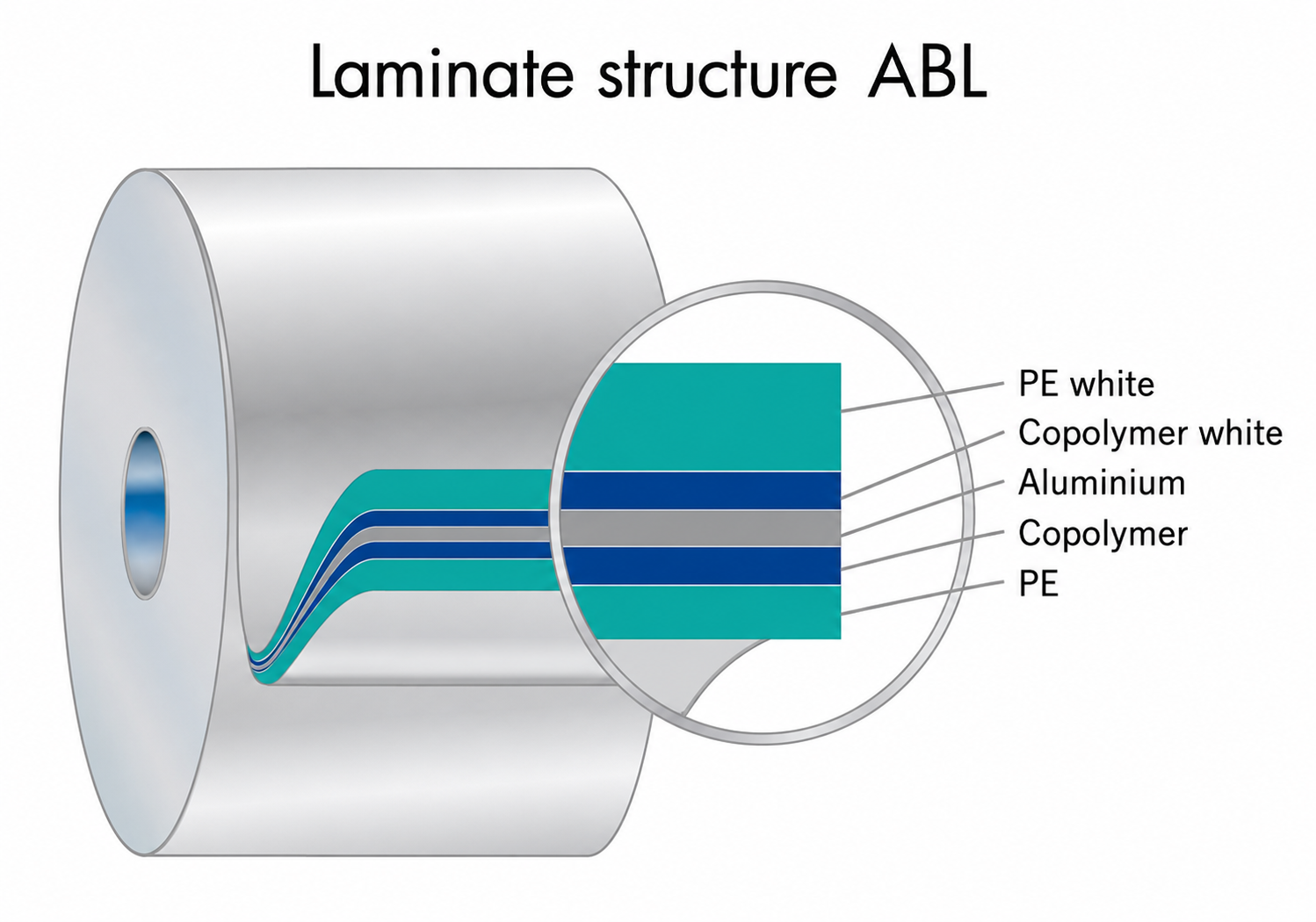

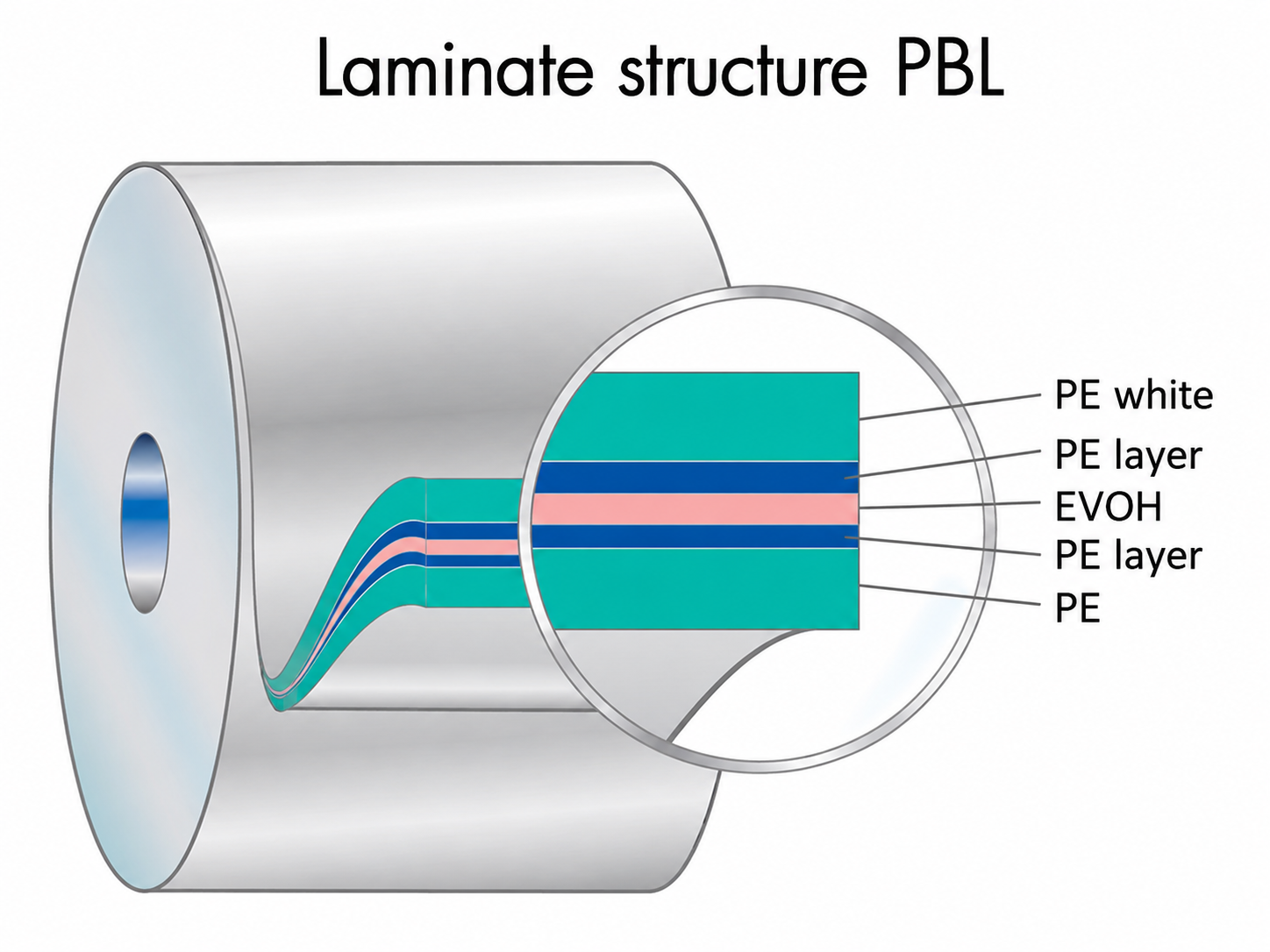

ABL (Aluminum Barrier Laminate) tubes incorporate a delicate aluminum layer to provide robust defense against oxygen, moisture, and light. Conversely, PBL (Plastic Barrier Laminate) tubes feature an all-plastic construction utilizing EVOH as the barrier layer, which enhances their recyclability.
Laminated tubes deliver outstanding barrier protection, exceptional durability, and versatile premium decoration options. This combination creates a striking visual impact on the shelf, significantly elevating your brand’s presentation.
Laminated tubes are incredibly versatile. In the beauty and hygiene sectors, they are ideal for cosmetics, skincare, hair care, personal care, and oral care products (such as eye creams, mascaras, lip balms, sunscreens, hand creams, foundations, toothpastes, facial cleansers, shampoos, conditioners, body lotions, and hair removal creams). Additionally, they are highly suitable for food sauces, medical gels, veterinary ointments, industrial adhesives, automotive chemicals, and maintenance products.
Absolutely. The high-barrier nature of laminated tubes actively shields sensitive formulations from oxygen, moisture, UV radiation, and external contaminants, thereby maintaining product stability and effectively extending shelf life.
Yes, they are. Boom offers comprehensive bespoke services, allowing you to tailor the tube diameter, cap design, barrier structure, color, surface decoration, and printing solutions to your exact specifications.
Laminated tubes are compatible with a variety of printing and finishing techniques, including offset printing, silkscreen printing, hot foil stamping, as well as matte and glossy surface finishes.
Yes. They are highly sought after for sunscreens and outdoor skincare ranges because they offer the essential UV protection, stability, and durability these products demand. They are equally well-suited for specialized dermatological and general skincare formulations.
Yes. Thanks to their superior sealing capabilities and structural integrity, laminated tubes are the industry standard for toothpaste packaging. They are also perfectly adapted for oral care gels and other dental hygiene formulations.
Laminated tubes span a vast array of industries. They are widely utilized in cosmetics, personal and baby care, oral hygiene, hotel amenities, pharmaceuticals, and food packaging. Furthermore, they are extensively used for veterinary products, agrochemicals, industrial adhesives and sealants, automotive fluids, electronic materials, construction chemicals, and art supplies.
Yes. Boom provides end-to-end OEM and ODM manufacturing services. We manage the entire process, from initial design and prototyping to mass production and comprehensive global logistics support.
To receive an accurate, customized quote, please supply your requirements for tube capacity, diameter, material structure, cap style, artwork design, desired surface finish, order quantity, and shipping destination. Please note that different sectors—such as cosmetics, food, pharmaceuticals, and industrial applications—may necessitate specific tube structures and barrier solutions tailored to their unique needs.
