Seeking Universal Tube Sizes Coupled with Agile Manufacturing?
Are you an R&D chemist, product manager, or sourcing specialist trying to hit precise fill volumes for your multi-industry product lines? Boom offers extensive capability matrices, precise sizing data, and bespoke mold creation with significantly faster turnarounds compared to rigid legacy suppliers.
Whether engineering a high-barrier EVOH toothpaste tube, a delicate cosmetic serum container, or a heavy-duty industrial sealant package, the technical resources below are designed to accelerate your planning and procurement phases.
Seeking Universal Tube Sizes Coupled with Agile Manufacturing?
Are you an R&D chemist, product manager, or sourcing specialist trying to hit precise fill volumes for your multi-industry product lines? Boom offers extensive capability matrices, precise sizing data, and bespoke mold creation with significantly faster turnarounds compared to rigid legacy suppliers.
Whether engineering a high-barrier EVOH toothpaste tube, a delicate cosmetic serum container, or a heavy-duty industrial sealant package, the technical resources below are designed to accelerate your planning and procurement phases.
Multi-Industry Tube Capacity & Dimensions Reference Charts
The extensive matrices below detail standard diameters across cosmetics, food, pharmaceuticals, and chemicals, along with their corresponding fill capacities. Tube lengths are highly customizable without requiring new molds.
Cosmetics Industry
| Diameter (Ø) | Capacity Range | Recommended Applications | Tube Structure |
|---|---|---|---|
| 16mm – 19mm | 5ml – 30ml | Lip gloss, eye serum, travel skincare, mascara, eye massage cream, lip balm, eyelash glue, eye cream, feminine intimate gel | PE / PCR / ABL |
| 22mm – 25mm | 15ml – 60ml | Facial cleanser, concealer, sunscreen, makeup remover, foundation, BB cream, hand cream, kids toothpaste, gel, eye cream, primer, body lotion | PE / EVOH / PBL / Glossy |
| 30mm – 35mm | 30ml – 120ml | BB cream, hand cream, body massage cream, facial cleanser, concealer, sunscreen, makeup remover, foundation, toothpaste, baby diaper cream | 5-Layer EVOH / Matte / Glossy |
| 40mm – 50mm | 100ml – 250ml | Hair mask, shampoo, conditioner, hair removal cream, hair dye, body lotion | ABL / PCR / Sugarcane / Glossy |
| 60mm | 250ml – 500ml | Professional salon & body care products | Heavy-duty laminated |
Multi-Industry Tube Capacity & Dimensions Reference Charts
The extensive matrices below detail standard diameters across cosmetics, food, pharmaceuticals, and chemicals, along with their corresponding fill capacities. Tube lengths are highly customizable without requiring new molds.
Cosmetics Industry
| Diameter (Ø) | Capacity Range | Recommended Applications | Tube Structure |
|---|---|---|---|
| 16mm – 19mm | 5ml – 30ml | Lip gloss, eye serum, travel skincare, mascara, eye massage cream, lip balm, eyelash glue, eye cream, feminine intimate gel | PE / PCR / ABL |
| 22mm – 25mm | 15ml – 60ml | Facial cleanser, concealer, sunscreen, makeup remover, foundation, BB cream, hand cream, kids toothpaste, gel, eye cream, primer, body lotion | PE / EVOH / PBL / Glossy |
| 30mm – 35mm | 30ml – 120ml | BB cream, hand cream, body massage cream, facial cleanser, concealer, sunscreen, makeup remover, foundation, toothpaste, baby diaper cream | 5-Layer EVOH / Matte / Glossy |
| 40mm – 50mm | 100ml – 250ml | Hair mask, shampoo, conditioner, hair removal cream, hair dye, body lotion | ABL / PCR / Sugarcane / Glossy |
| 60mm | 250ml – 500ml | Professional salon & body care products | Heavy-duty laminated |
Food Industry
| Diameter (Ø) | Capacity Range | Recommended Applications | Tube Structure |
|---|---|---|---|
| 16mm – 22mm | 10ml – 20ml | Mustard, chili sauce, condiments | PE / ABL / PBL / EVOH |
| 25mm – 30mm | 30ml – 60ml | Mayonnaise, jam, condiments | PE / ABL / PBL / EVOH |
| 32mm – 40mm | 80ml – 120ml | Mixed rice sauce, condensed milk, jam, condiments | ABL / PBL / EVOH |
| 50mm – 60mm | 150ml – 300ml | Ketchup and other large-capacity jams, condiments | ABL / PBL / EVOH |
Food Industry
| Diameter (Ø) | Capacity Range | Recommended Applications | Tube Structure |
|---|---|---|---|
| 16mm – 22mm | 10ml – 20ml | Mustard, chili sauce, condiments | PE / ABL / PBL / EVOH |
| 25mm – 30mm | 30ml – 60ml | Mayonnaise, jam, condiments | PE / ABL / PBL / EVOH |
| 32mm – 40mm | 80ml – 120ml | Mixed rice sauce, condensed milk, jam, condiments | ABL / PBL / EVOH |
| 50mm – 60mm | 150ml – 300ml | Ketchup and other large-capacity jams, condiments | ABL / PBL / EVOH |
Pharmaceutical Industry
| Diameter (Ø) | Capacity Range | Recommended Applications | Tube Structure |
|---|---|---|---|
| 11mm – 13.5mm | 0.3ml – 5ml | Pet dewormer, pet tear stain remover | PE / ABL / EVOH |
| 16mm – 19mm | 3ml – 5ml | Gynecological gel, scar gel, post-op care gel, acne gel, dermatitis ointment, antibacterial cream, burn cream, nasal repair gel, anti-itch cream, hemorrhoid gel, chilblain cream | PE / ABL |
| 22mm – 25mm | 20ml – 30ml | Ultrasound gel, eczema ointment, hemorrhoid gel, chilblain cream, burn cream | PE / ABL / PBL |
| 28mm – 30mm | 50ml – 80ml | Beauty device dedicated gel, anti-wrinkle cream, pet toothpaste | PE / ABL / PBL |
| 32mm – 35mm | 100ml – 150ml | Oral antibacterial cream, beauty massage cream, hair removal cream, pet hairball remedy, pet nutrition gel | PE / ABL / PBL |
| 40mm – 50mm | 180ml – 200ml | Extra-large medical supplies ointment packaging | PE / ABL / PBL |
Pharmaceutical Industry
| Diameter (Ø) | Capacity Range | Recommended Applications | Tube Structure |
|---|---|---|---|
| 11mm – 13.5mm | 0.3ml – 5ml | Pet dewormer, pet tear stain remover | PE / ABL / EVOH |
| 16mm – 19mm | 3ml – 5ml | Gynecological gel, scar gel, post-op care gel, acne gel, dermatitis ointment, antibacterial cream, burn cream, nasal repair gel, anti-itch cream, hemorrhoid gel, chilblain cream | PE / ABL |
| 22mm – 25mm | 20ml – 30ml | Ultrasound gel, eczema ointment, hemorrhoid gel, chilblain cream, burn cream | PE / ABL / PBL |
| 28mm – 30mm | 50ml – 80ml | Beauty device dedicated gel, anti-wrinkle cream, pet toothpaste | PE / ABL / PBL |
| 32mm – 35mm | 100ml – 150ml | Oral antibacterial cream, beauty massage cream, hair removal cream, pet hairball remedy, pet nutrition gel | PE / ABL / PBL |
| 40mm – 50mm | 180ml – 200ml | Extra-large medical supplies ointment packaging | PE / ABL / PBL |
Chemical Industry
| Diameter (Ø) | Capacity Range | Recommended Applications | Tube Structure |
|---|---|---|---|
| 11mm – 13.5mm | 0.3ml – 5ml | Pet dewormer, pet tear stain remover | PE / ABL / EVOH |
| 16mm – 19mm | 3ml – 5ml | Gynecological gel, scar gel, post-op care gel, acne gel, dermatitis ointment, antibacterial cream, burn cream, nasal repair gel, anti-itch cream, hemorrhoid gel, chilblain cream | PE / ABL |
| 22mm – 25mm | 20ml – 30ml | Ultrasound gel, eczema ointment, hemorrhoid gel, chilblain cream, burn cream | PE / ABL / PBL |
| 28mm – 30mm | 50ml – 80ml | Beauty device dedicated gel, anti-wrinkle cream, pet toothpaste | PE / ABL / PBL |
| 32mm – 35mm | 100ml – 150ml | Oral antibacterial cream, beauty massage cream, hair removal cream, pet hairball remedy, pet nutrition gel | PE / ABL / PBL |
| 40mm – 50mm | 180ml – 200ml | Extra-large medical supplies ointment packaging | PE / ABL / PBL |
Chemical Industry
| Diameter (Ø) | Capacity Range | Recommended Applications | Tube Structure |
|---|---|---|---|
| 11mm – 13.5mm | 0.3ml – 5ml | Pet dewormer, pet tear stain remover | PE / ABL / EVOH |
| 16mm – 19mm | 3ml – 5ml | Gynecological gel, scar gel, post-op care gel, acne gel, dermatitis ointment, antibacterial cream, burn cream, nasal repair gel, anti-itch cream, hemorrhoid gel, chilblain cream | PE / ABL |
| 22mm – 25mm | 20ml – 30ml | Ultrasound gel, eczema ointment, hemorrhoid gel, chilblain cream, burn cream | PE / ABL / PBL |
| 28mm – 30mm | 50ml – 80ml | Beauty device dedicated gel, anti-wrinkle cream, pet toothpaste | PE / ABL / PBL |
| 32mm – 35mm | 100ml – 150ml | Oral antibacterial cream, beauty massage cream, hair removal cream, pet hairball remedy, pet nutrition gel | PE / ABL / PBL |
| 40mm – 50mm | 180ml – 200ml | Extra-large medical supplies ointment packaging | PE / ABL / PBL |
Artwork Safety Zones & Printing Boundaries
To guarantee flawless graphical alignment during manufacturing, kindly adhere to the following safety perimeters.
Nozzle Clearance
Leave a 3mm empty margin adjacent to the tube shoulder to prevent ink smudging and structural warping during assembly.

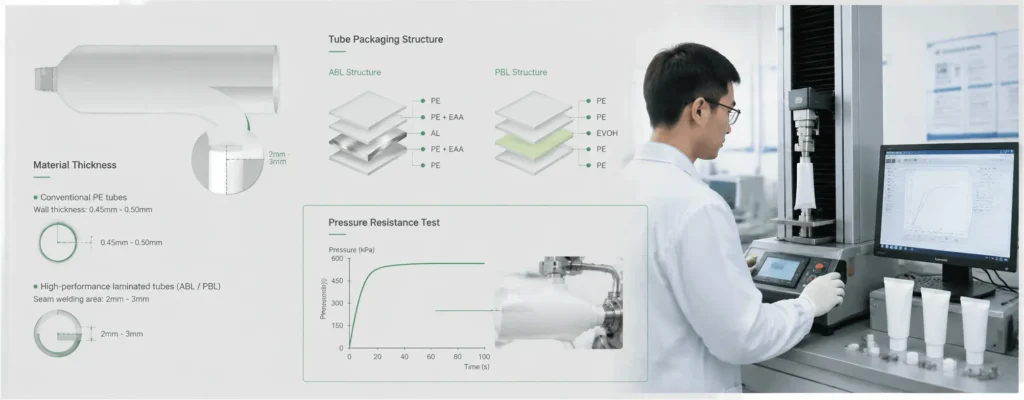

Technical Insight On Material Thickness
Our conventional single-layer and multi-layer extruded PE tubes typically feature wall thicknesses between 0.45mm and 0.50mm.
High-performance laminated options (ABL and PBL) generally utilize seam welding area ranging from 2mm to 3mm in width, ensuring excellent squeeze memory and preventing air intake.
Crimping & Sealing Area
Keep a 6mm to 8mm buffer at the tube's upper extremity. This space is reserved for thermal crimping and potential batch code embossing.
Welding Overlap
Laminated tubes (ABL/PBL) require a 2mm to 3mm vertical unprinted strip to facilitate a secure and seamless weld.
Artwork Safety Zones & Printing Boundaries
To guarantee flawless graphical alignment during manufacturing, kindly adhere to the following safety perimeters.
Nozzle Clearance
Leave a 3mm empty margin adjacent to the tube shoulder to prevent ink smudging and structural warping during assembly.
Technical Insight On Material Thickness
Our conventional single-layer and multi-layer extruded PE tubes typically feature wall thicknesses between 0.45mm and 0.50mm.
High-performance laminated options (ABL and PBL) generally utilize seam welding area ranging from 2mm to 3mm in width, ensuring excellent squeeze memory and preventing air intake.
Crimping & Sealing Area
Keep a 6mm to 8mm buffer at the tube's upper extremity. This space is reserved for thermal crimping and potential batch code embossing.
Welding Overlap
Laminated tubes (ABL/PBL) require a 2mm to 3mm vertical unprinted strip to facilitate a secure and seamless weld.

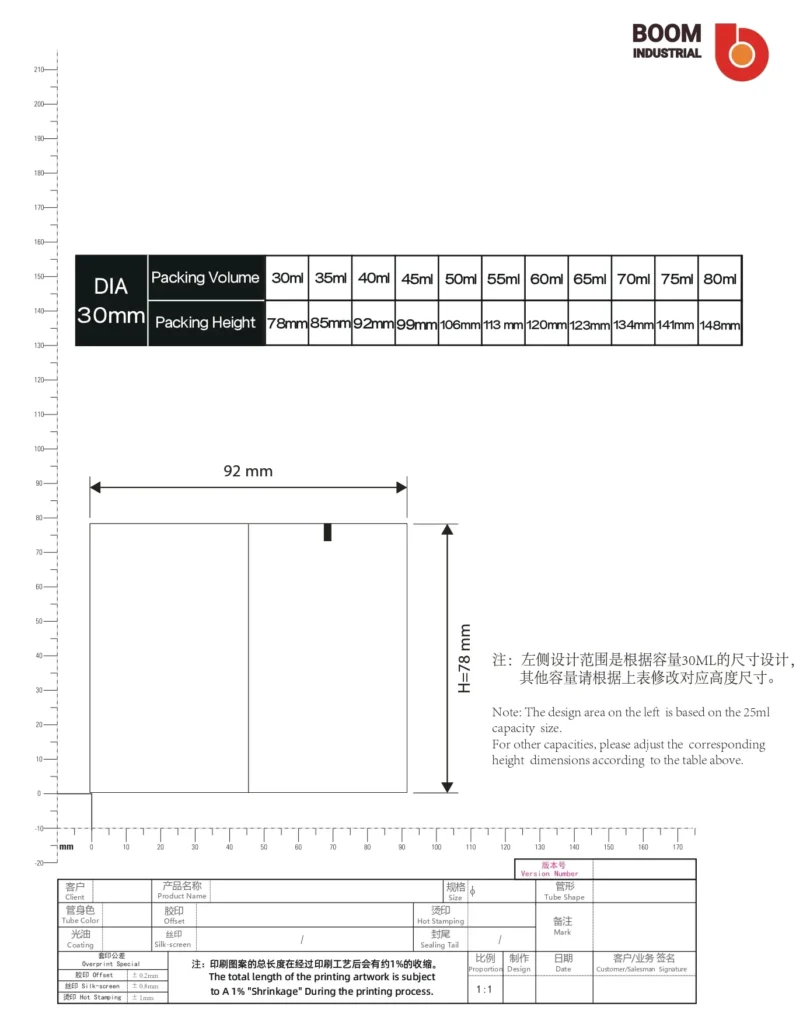

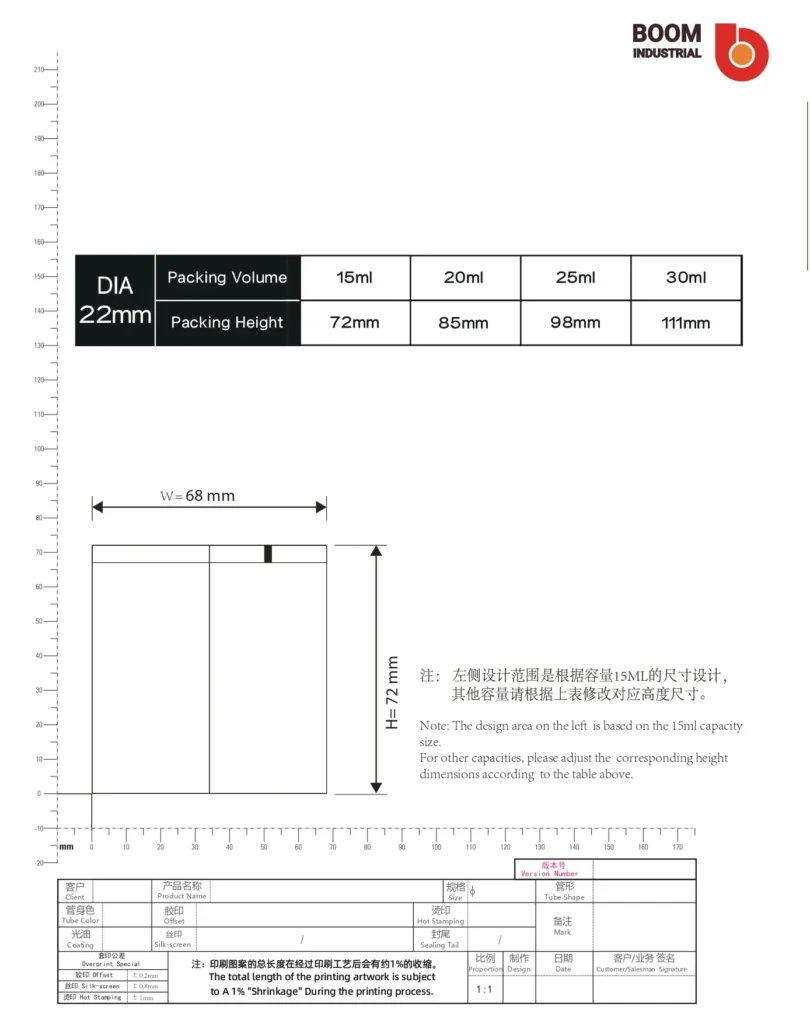

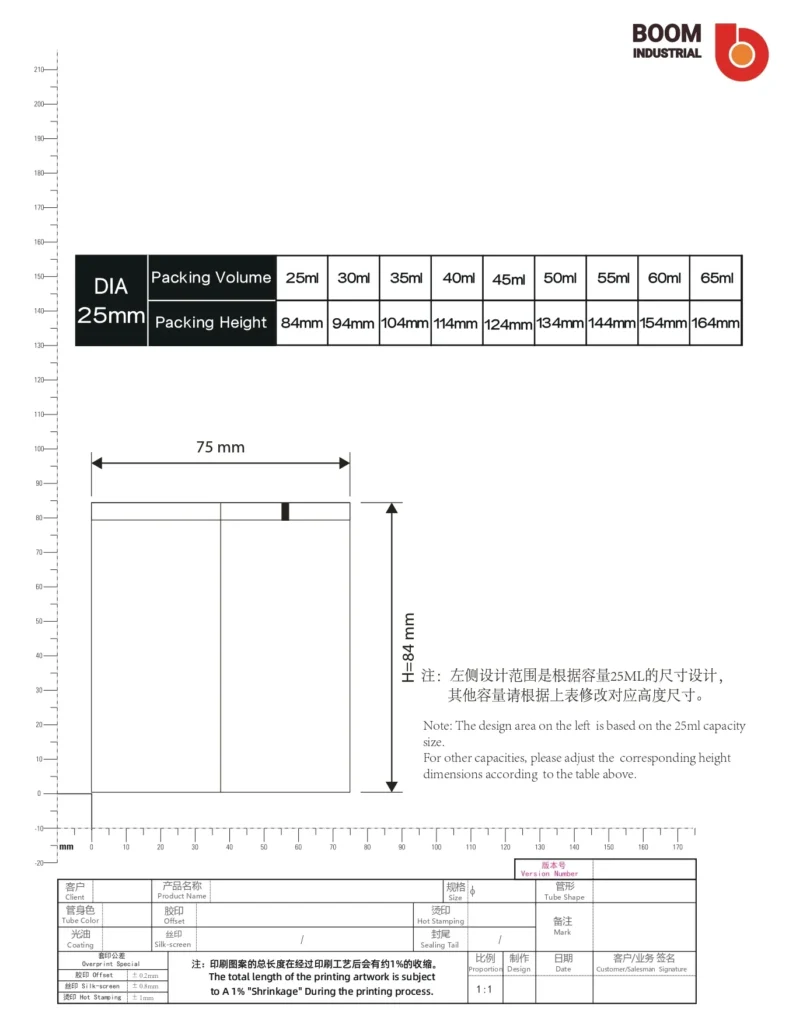

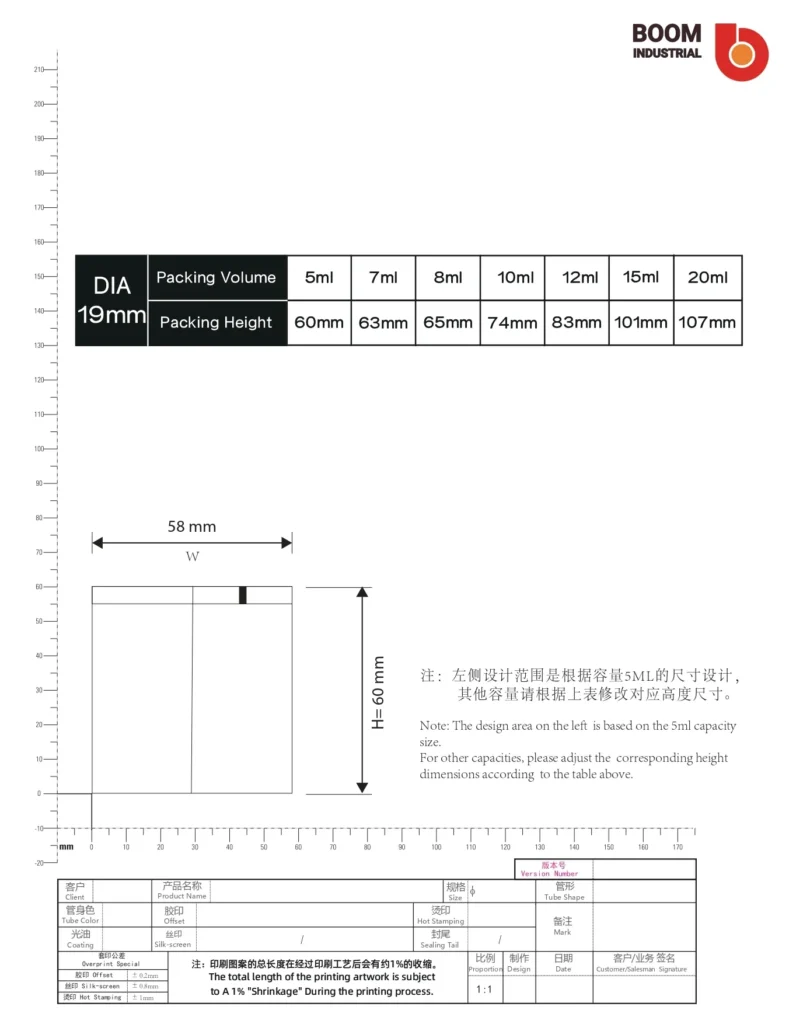

Access Complimentary Die-Line Blueprints (.AI & .PDF)
Grab highly accurate packaging templates tailored for Adobe Illustrator, engineered perfectly for your design workflows.
Access Complimentary Die-Line Blueprints (.AI & .PDF)
Grab highly accurate packaging templates tailored for Adobe Illustrator, engineered perfectly for your design workflows.

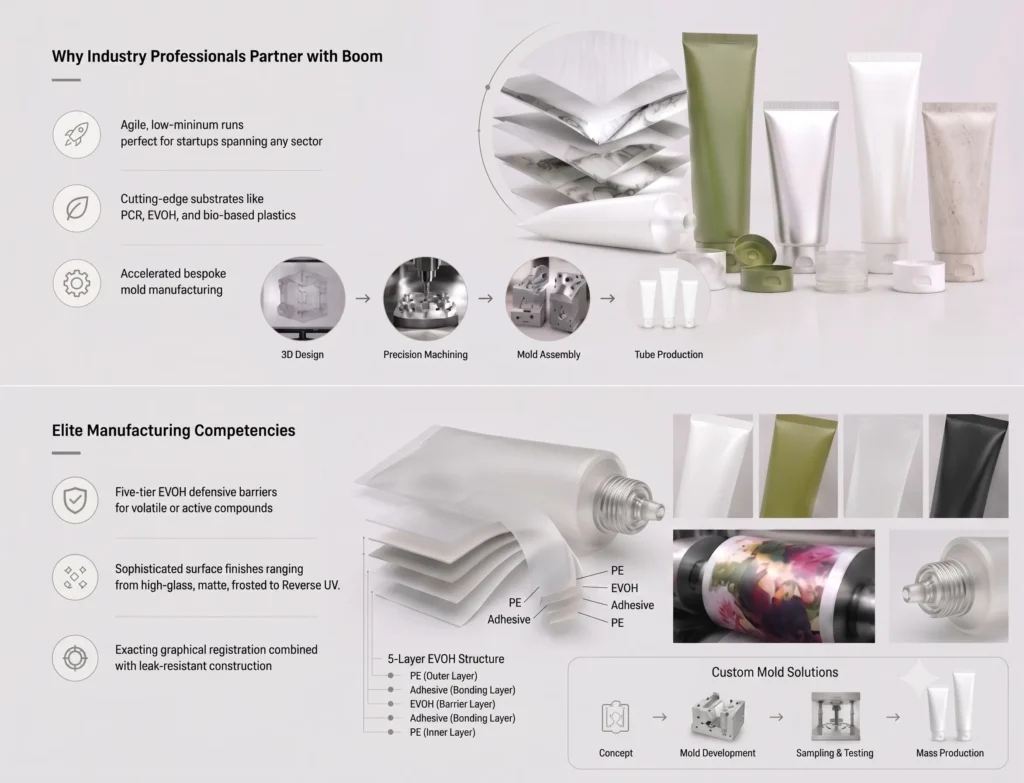

Why Industry Professionals Partner With Boom
Elite Manufacturing Competencies
Book an Engineering Session & Claim Your Prototype Box
Require a unique CAD blueprint or physical testing samples for your varied product lines? Our packaging technicians are standing by.
Why Industry Professionals Partner With Boom
Elite Manufacturing Competencies
Book an Engineering Session & Claim Your Prototype Box
Require a unique CAD blueprint or physical testing samples for your varied product lines? Our packaging technicians are standing by.
FAQs Regarding Cross-Industry Tube Artwork Specifications
Understand how artwork dimensions impact layout strategies, bleed zones, logo positioning, and full-scale OEM manufacturing across all Boom-supported industries.
These parameters define the viable graphic canvas on a tube. They dictate where vital product data, branding, and color blocks can be safely positioned within a specific diameter and length.
A die-line is a precise technical blueprint illustrating the printable surface, protective safe zones, bleed edges, sealing areas, and the physical orientation of the container.
This is the central protected area where all essential typography and brand logos must reside to eliminate any risk of edge distortion or accidental trimming.
Absolutely. Boom provides customized template files matching your specific diameter, volume, material structure, and chosen closure mechanism.
Strictly utilize our provided die-lines, respect the safe zones, verify the cap's orientation relative to your text, apply correct bleeds, outline your fonts, and rigorously check our digital proofs.
Definitely. Precise dimensional templates are fundamental for private label brands aiming to create flawless, market-ready aesthetics across beauty, medical, or industrial segments.
Boom empowers brands across all sectors to finalize production-ready designs with precision templates, rigorous pre-press reviews, and comprehensive OEM support.
Following safety margins guarantees your text isn't trimmed, stretched, or blurred during the high-speed printing and thermal sealing phases, preserving your brand's integrity.
The width and length dictate your visual real estate. Massive tubes allow expansive branding and detailed instructions, whereas smaller formats demand minimalist, high-impact layouts.
A bleed extends your background colors slightly past the intended cut lines, preventing unsightly unprinted white gaps after the tube is formed and sealed.
We strongly prefer vector formats like AI, PDF, or EPS. Ensure all text is converted to outlines and images meet high-resolution prepress standards.
Yes. Techniques like silk screening, metallic hot stamping, and standard offset printing all have unique tolerances regarding line thickness, gradient fading, and color separation.
Boom seamlessly merges aesthetic design parameters with industrial manufacturing realities, ensuring your global brand looks spectacular whether it's holding luxury skincare or potent industrial adhesives.
FAQs Regarding Cross-Industry Tube Artwork Specifications
Understand how artwork dimensions impact layout strategies, bleed zones, logo positioning, and full-scale OEM manufacturing across all Boom-supported industries.
These parameters define the viable graphic canvas on a tube. They dictate where vital product data, branding, and color blocks can be safely positioned within a specific diameter and length.
A die-line is a precise technical blueprint illustrating the printable surface, protective safe zones, bleed edges, sealing areas, and the physical orientation of the container.
This is the central protected area where all essential typography and brand logos must reside to eliminate any risk of edge distortion or accidental trimming.
Absolutely. Boom provides customized template files matching your specific diameter, volume, material structure, and chosen closure mechanism.
Strictly utilize our provided die-lines, respect the safe zones, verify the cap's orientation relative to your text, apply correct bleeds, outline your fonts, and rigorously check our digital proofs.
Definitely. Precise dimensional templates are fundamental for private label brands aiming to create flawless, market-ready aesthetics across beauty, medical, or industrial segments.
Boom empowers brands across all sectors to finalize production-ready designs with precision templates, rigorous pre-press reviews, and comprehensive OEM support.
Following safety margins guarantees your text isn't trimmed, stretched, or blurred during the high-speed printing and thermal sealing phases, preserving your brand's integrity.
The width and length dictate your visual real estate. Massive tubes allow expansive branding and detailed instructions, whereas smaller formats demand minimalist, high-impact layouts.
A bleed extends your background colors slightly past the intended cut lines, preventing unsightly unprinted white gaps after the tube is formed and sealed.
We strongly prefer vector formats like AI, PDF, or EPS. Ensure all text is converted to outlines and images meet high-resolution prepress standards.
Yes. Techniques like silk screening, metallic hot stamping, and standard offset printing all have unique tolerances regarding line thickness, gradient fading, and color separation.
Boom seamlessly merges aesthetic design parameters with industrial manufacturing realities, ensuring your global brand looks spectacular whether it's holding luxury skincare or potent industrial adhesives.
