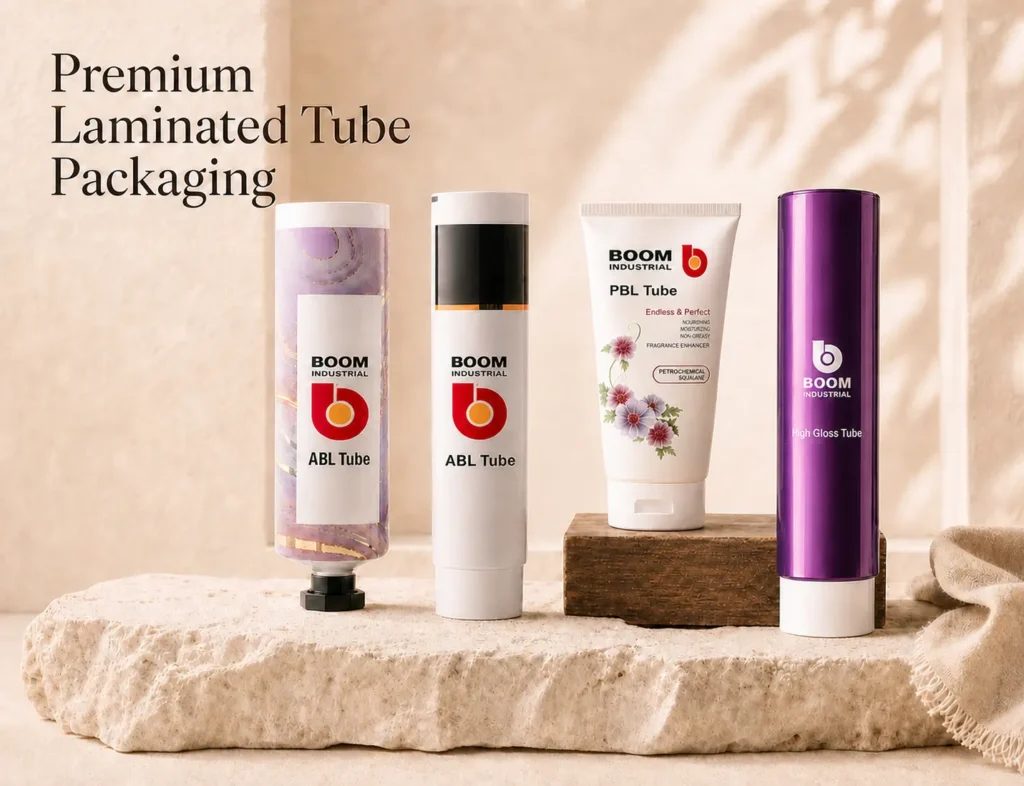

Laminated Tubes
Boom Company specializes in high-quality laminated tube packaging solutions, offering ABL, PBL, and high-gloss surface tubes widely used in cosmetics, personal care, pharmaceuticals, food and chemical industries. Our laminated tubes combine strong barrier protection with premium visual appeal, helping brands enhance product value and shelf presence.

Laminated Tubes
Boom Company specializes in high-quality laminated tube packaging solutions, offering ABL, PBL, and high-gloss surface tubes widely used in cosmetics, personal care, pharmaceuticals, food and chemical industries. Our laminated tubes combine strong barrier protection with premium visual appeal, helping brands enhance product value and shelf presence.

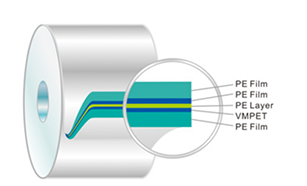

Laminate Structure Diagrams
Explore Different Laminated Tube Material Structures and their Features.
Laminate Structure Diagrams
Explore Different Laminated Tube Material Structures and their Features.

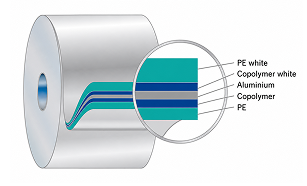

Aluminum Barrier Laminate (ABL) Tube

PE white outer layer
34%

Copolymer white
8%

Aluminium barrier layer
14%

Copolymer
8%

PE inner layer
36%
Aluminum foil barrier structure

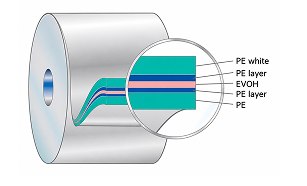

Plastic Barrier Laminate (PBL) Tube

PE white outer layer
34%

PE layer
8%

EVOH barrier layer
8%

PE layer
8%

PE inner layer
4 2%
EVOH all-plastic barrier structure

Standard laminate thickness options (μm): 220, 250, 270, 300, 310, and 400. Custom thicknesses are available upon request.
Standard laminate thickness options (μm): 220, 250, 270, 300, 310, and 400. Custom thicknesses are available upon request.

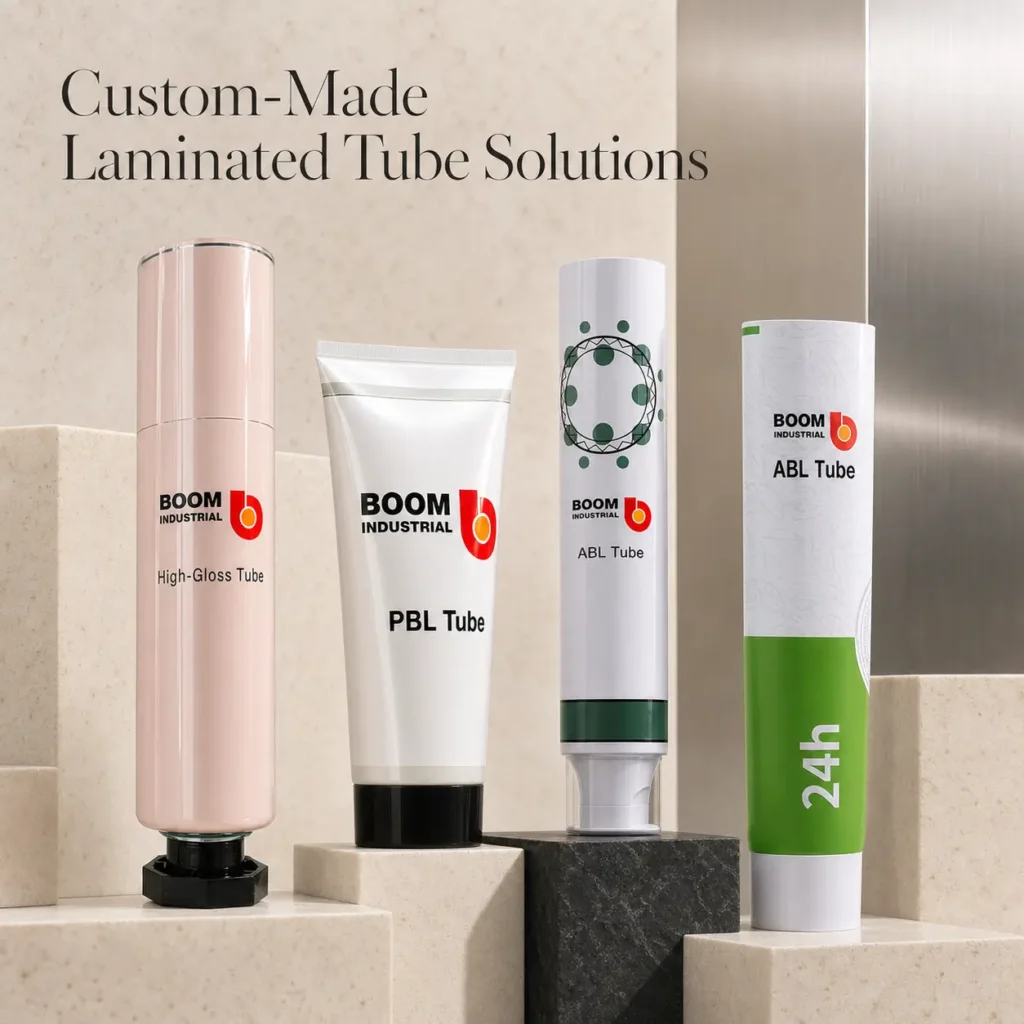

Key Advantages
With a stable structure and excellent flexibility, laminated tubes effectively protect contents from air, moisture, and external contamination, extending product shelf life.
We also provide full customization in sizes, printing, surface finishes, and cap styles to meet diverse premium packaging requirements.

Excellent barrier protection to preserve product integrity

Premium appearance to elevate brand image

Superior printability for various decoration techniques

Durable structure with strong leak resistance

Fully customizable solutions for different brand needs

Key Advantages
With a stable structure and excellent flexibility, laminated tubes effectively protect contents from air, moisture, and external contamination, extending product shelf life.
We also provide full customization in sizes, printing, surface finishes, and cap styles to meet diverse premium packaging requirements.

Excellent barrier protection to preserve product integrity

Premium appearance to elevate brand image

Superior printability for various decoration techniques

Durable structure with strong leak resistance

Fully customizable solutions for different brand needs
Tube Diameter / Body Length / Capacity Chart
Accurate Tube Diameter, Capacity and Length for Optimized
Compatibility with Packaging Specifications.

11 Pipe diameter mm
| ml | mm | |
| 1 | —— | 51 |
| 3 | —— | 61 |
| 5 | —— | 71 |

13 Pipe diameter mm
| ml | mm | |
| 1 | ———— | 40 |
| 3 | ———— | 51 |
| 5 | ———— | 65 |

16 Pipe diameter mm
| ml | mm | |
| 3 | ———— | 43 |
| 5 | ———— | 55 |
| 10 | ———— | 80 |

19 Pipe diameter mm
| ml | mm | |
| 10 | ———— | 66 |
| 15 | ———— | 85 |
| 20 | ———— | 100 |
| 25 | ———— | 110 |

22 Pipe diameter mm
| ml | mm | |
| 10 | ———— | 60 |
| 15 | ———— | 72 |
| 20 | ———— | 85 |
| 25 | ———— | 100 |
| 30 | ———— | 110 |

25 Pipe diameter mm
| ml | mm | |
| 20 | ———— | 74 |
| 25 | ———— | 84 |
| 30 | ———— | 94 |
| 35 | ———— | 104 |
| 40 | ———— | 115 |
| 50 | ———— | 135 |
| 60 | ———— | 145 |

30 Pipe diameter mm
| ml | mm | |
| 30 | ———— | 78 |
| 35 | ———— | 85 |
| 40 | ———— | 92 |
| 50 | ———— | 106 |
| 60 | ———— | 122 |
| 70 | ———— | 136 |
| 80 | ———— | 150 |

35 Pipe diameter mm
| ml | mm | |
| 35 | ———— | 75 |
| 40 | ———— | 81 |
| 50 | ———— | 91 |
| 60 | ———— | 102 |
| 70 | ———— | 112 |
| 80 | ———— | 124 |
| 90 | ———— | 135 |
| 100 | ———— | 148 |
| 110 | ———— | 162 |

38 Pipe diameter mm
| ml | mm | |
| 60 | ———— | 90 |
| 70 | ———— | 100 |
| 80 | ———— | 110 |
| 90 | ———— | 120 |
| 100 | ———— | 130 |
| 110 | ———— | 145 |
| 120 | ———— | 155 |
| 130 | ———— | 164 |
| 140 | ———— | 173 |
| 150 | ———— | 181 |

40 Pipe diameter mm
| ml | mm | |
| 70 | ———— | 98 |
| 80 | ———— | 106 |
| 90 | ———— | 114 |
| 100 | ———— | 122 |
| 110 | ———— | 128 |
| 120 | ———— | 137 |
| 130 | ———— | 145 |
| 140 | ———— | 154 |
| 150 | ———— | 162 |
| 160 | ———— | 170 |
| 170 | ———— | 178 |
| 180 | ———— | 186 |

45 Pipe diameter mm
| ml | mm | |
| 90 | ———— | 86 |
| 100 | ———— | 95 |
| 110 | ———— | 102 |
| 120 | ———— | 110 |
| 130 | ———— | 115 |
| 140 | ———— | 126 |
| 150 | ———— | 134 |
| 160 | ———— | 142 |
| 170 | ———— | 150 |
| 180 | ———— | 158 |
| 190 | ———— | 164 |
| 200 | ———— | 172 |
| 210 | ———— | 180 |
| 220 | ———— | 190 |

50 Pipe diameter mm
| ml | mm | |
| 130 | ———— | 110 |
| 140 | ———— | 118 |
| 150 | ———— | 120 |
| 160 | ———— | 130 |
| 170 | ———— | 137 |
| 180 | ———— | 143 |
| 190 | ———— | 149 |
| 200 | ———— | 156 |
| 210 | ———— | 164 |
| 220 | ———— | 170 |
| 230 | ———— | 175 |
| 240 | ———— | 180 |
| 250 | ———— | 185 |

55 Pipe diameter mm
| ml | mm | |
| 150 | ———— | 100 |
| 160 | ———— | 105 |
| 170 | ———— | 110 |
| 180 | ———— | 115 |
| 190 | ———— | 120 |
| 200 | ———— | 124 |
| 210 | ———— | 127 |
| 220 | ———— | 130 |
| 230 | ———— | 137 |
| 240 | ———— | 143 |
| 250 | ———— | 149 |
| 300 | ———— | 173 |
| 350 | ———— | 195 |
| 400 | ———— | 218 |

60 Pipe diameter mm
| ml | mm | |
| 200 | ———— | 108 |
| 210 | ———— | 115 |
| 220 | ———— | 120 |
| 230 | ———— | 125 |
| 240 | ———— | 130 |
| 250 | ———— | 135 |
| 300 | ———— | 150 |
| 350 | ———— | 162 |
| 400 | ———— | 175 |
| 450 | ———— | 190 |
| 500 | ———— | 225 |
Tube Diameter / Body Length / Capacity Chart
Accurate Tube Diameter, Capacity and Length for Optimized
Compatibility with Packaging Specifications.
Printing

8-Color Offset Printing
Multi-color high-precision printing for rich graphics and layered visuals Advantage: stable color / sharp details / mass production consistency

Silkscreen Printing
Ink is directly applied to the tube surface for bold visual impact Advantage: strong color / high adhesion / abrasion resistance

Hot Stamping (Gold / Silver / Rainbow)
Metallic foil transfer process for a premium packaging appearance Advantage: premium look / strong recognition / brand enhancement

Reverse UV Coating
Gloss and matte contrast to highlight design depth and key elements Advantage: visual depth / focus highlighting / refined finish

Matte Coating
Smooth matte surface finish for a soft premium appearance Advantage: elegant look / anti-fingerprint / minimalist style

Frosted Finish
Fine frosted texture for a unique tactile and visual effect Advantage: premium touch / strong differentiation / unique look

Glossy Coating
High-gloss surface finish for brighter and more vivid colors Advantage: strong impact / vibrant color / enhanced appeal
Printing
Shoulder Type (Selectively Displayed)
Appearance Display












Internal Structure Display






Special threads and matching caps can be custom molded; tube shoulder injection can also be
developed based on specific requirements.
Shoulder Type (Selectively Displayed)
Special threads and matching caps can be custom molded; tube shoulder injection can also be developed based on specific requirements.
Cap Type (Selectively Displayed)

Octagonal Cap

Doctor Cap

Flat Cap (Glossy Finish)

Ribbed Cap

Paint Tube Cap

Ribbed Flip-Top Cap

Screw Cap

Acrylic Cap
Flip-top caps can be equipped with a positioning function. Please contact us for details.
Cap Type (Selectively Displayed)
Flip-top caps can be equipped with a positioning function. Please contact us for details.
Tube Body Type
Tube Body Type
Flexible Tube Shape Designs to Meet Diverse Brand Packaging Needs.
Packaging & Warehousing



Packaging & Warehousing

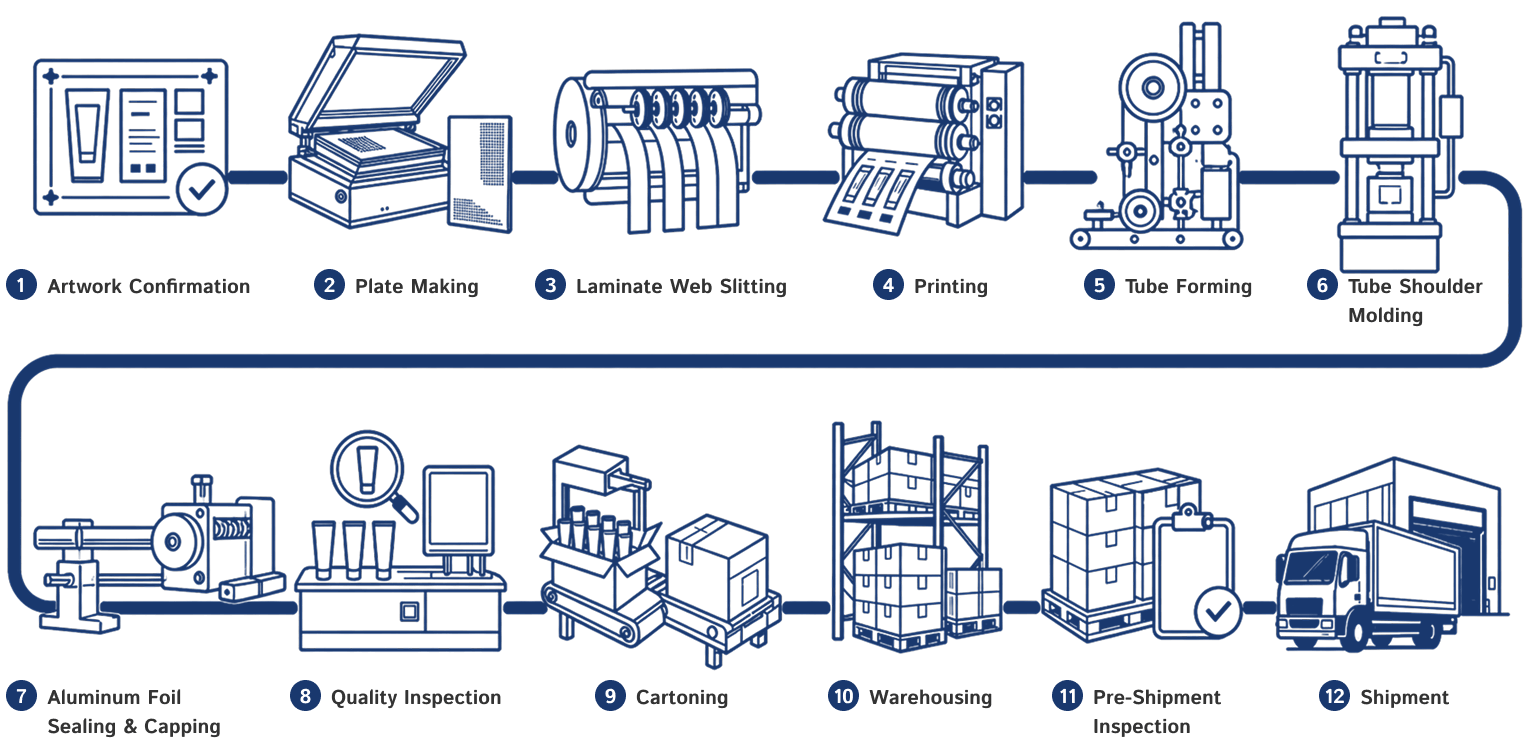

Production Flow Chart

Production Flow Chart

Quality Inspection Flow Chart

We implement an advanced quality management system and rigorous inspection procedures to ensure consistent product quality.
Our in-process quality control system includes:
First Article Inspection (FAI)
Self-Inspection
Cross-Inspection (Peer Inspection)
Critical Control Point (CCP) Inspection
Type Inspection
The Quality Control (QC) team is responsible for implementing first article inspections, conducting routine in-process inspections, and performing inspections at critical control points throughout production.In addition, QC conducts sampling inspections and testing every two hours to maintain process consistency and product quality.
Production operators are responsible for conducting self-inspections and cross-inspections during manufacturing, as well as identifying and segregating any non-conforming products.
The Quality Assurance (QA) team performs on-site audits and monitors the entire production process to ensure compliance with quality requirements.
Quality Inspection Flow Chart

We implement an advanced quality management system and rigorous inspection procedures to ensure consistent product quality.
Our in-process quality control system includes:
First Article Inspection (FAI)
Self-Inspection
Cross-Inspection (Peer Inspection)
Critical Control Point (CCP) Inspection
Type Inspection
The Quality Control (QC) team is responsible for implementing first article inspections, conducting routine in-process inspections, and performing inspections at critical control points throughout production.In addition, QC conducts sampling inspections and testing every two hours to maintain process consistency and product quality.
Production operators are responsible for conducting self-inspections and cross-inspections during manufacturing, as well as identifying and segregating any non-conforming products.
The Quality Assurance (QA) team performs on-site audits and monitors the entire production process to ensure compliance with quality requirements.
Product Showcase
Product Showcase
Demonstration of Professional Laminated Tubes Featuring ABL, PBL and High-Gloss Tubes.

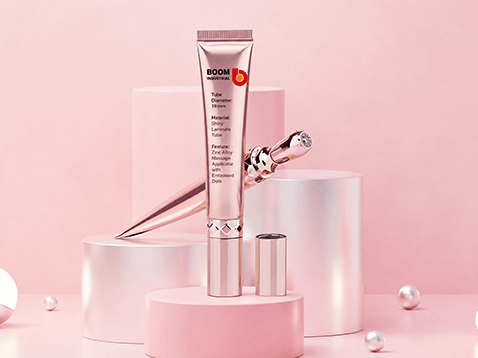

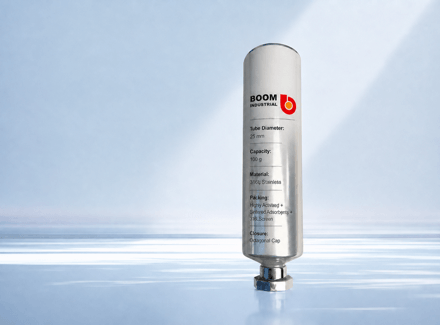

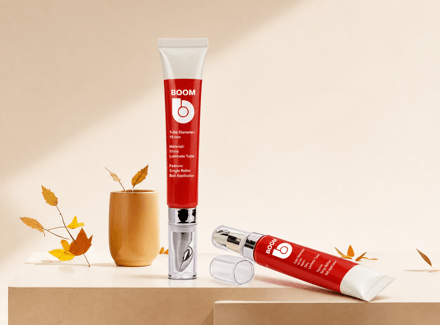

Shiny Tube

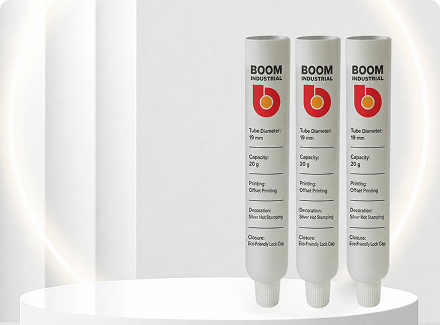

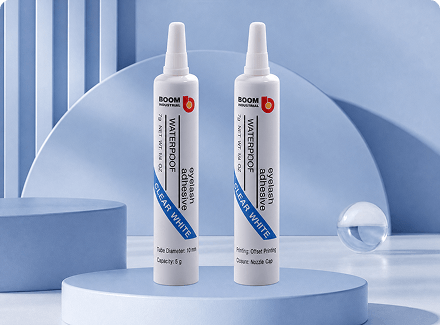

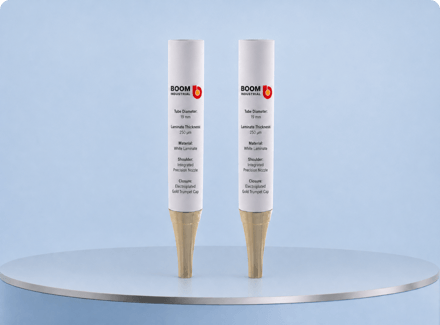

ABL Tube

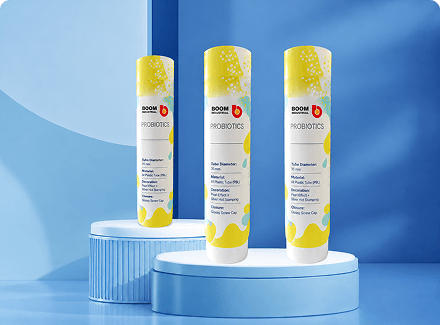

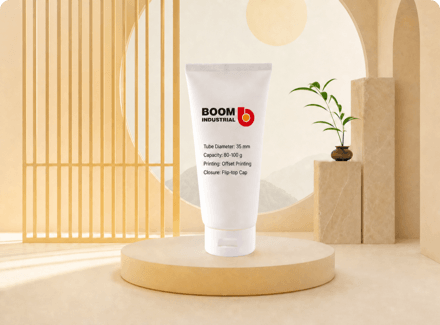

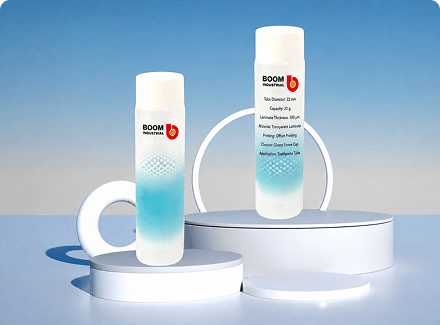

PBL Tube
Frequently Asked Questions
Answers to Questions About Materials, Manufacturing, Customization, Applications and More.
Laminated Tubes Are Advanced, Multi-Layered Packaging Solutions Featuring High-Barrier Structures. They Are Specifically Engineered To Safeguard Your Product, Ensuring Formulation Stability And Preserving Its Overall Performance.
ABL (Aluminum Barrier Laminate) tubes incorporate a delicate aluminum layer to provide robust defense against oxygen, moisture, and light. Conversely, PBL (Plastic Barrier Laminate) tubes feature an all-plastic construction utilizing EVOH as the barrier layer, which enhances their recyclability.
Laminated tubes deliver outstanding barrier protection, exceptional durability, and versatile premium decoration options. This combination creates a striking visual impact on the shelf, significantly elevating your brand’s presentation.
Laminated tubes are incredibly versatile. In the beauty and hygiene sectors, they are ideal for cosmetics, skincare, hair care, personal care, and oral care products (such as eye creams, mascaras, lip balms, sunscreens, hand creams, foundations, toothpastes, facial cleansers, shampoos, conditioners, body lotions, and hair removal creams). Additionally, they are highly suitable for food sauces, medical gels, veterinary ointments, industrial adhesives, automotive chemicals, and maintenance products.
Absolutely. The high-barrier nature of laminated tubes actively shields sensitive formulations from oxygen, moisture, UV radiation, and external contaminants, thereby maintaining product stability and effectively extending shelf life.
Yes, they are. Boom offers comprehensive bespoke services, allowing you to tailor the tube diameter, cap design, barrier structure, color, surface decoration, and printing solutions to your exact specifications.
Laminated tubes are compatible with a variety of printing and finishing techniques, including offset printing, silkscreen printing, hot foil stamping, as well as matte and glossy surface finishes.
Yes. They are highly sought after for sunscreens and outdoor skincare ranges because they offer the essential UV protection, stability, and durability these products demand. They are equally well-suited for specialized dermatological and general skincare formulations.
Yes. Thanks to their superior sealing capabilities and structural integrity, laminated tubes are the industry standard for toothpaste packaging. They are also perfectly adapted for oral care gels and other dental hygiene formulations.
Laminated tubes span a vast array of industries. They are widely utilized in cosmetics, personal and baby care, oral hygiene, hotel amenities, pharmaceuticals, and food packaging. Furthermore, they are extensively used for veterinary products, agrochemicals, industrial adhesives and sealants, automotive fluids, electronic materials, construction chemicals, and art supplies.
Yes. Boom provides end-to-end OEM and ODM manufacturing services. We manage the entire process, from initial design and prototyping to mass production and comprehensive global logistics support.
To receive an accurate, customized quote, please supply your requirements for tube capacity, diameter, material structure, cap style, artwork design, desired surface finish, order quantity, and shipping destination. Please note that different sectors—such as cosmetics, food, pharmaceuticals, and industrial applications—may necessitate specific tube structures and barrier solutions tailored to their unique needs.
