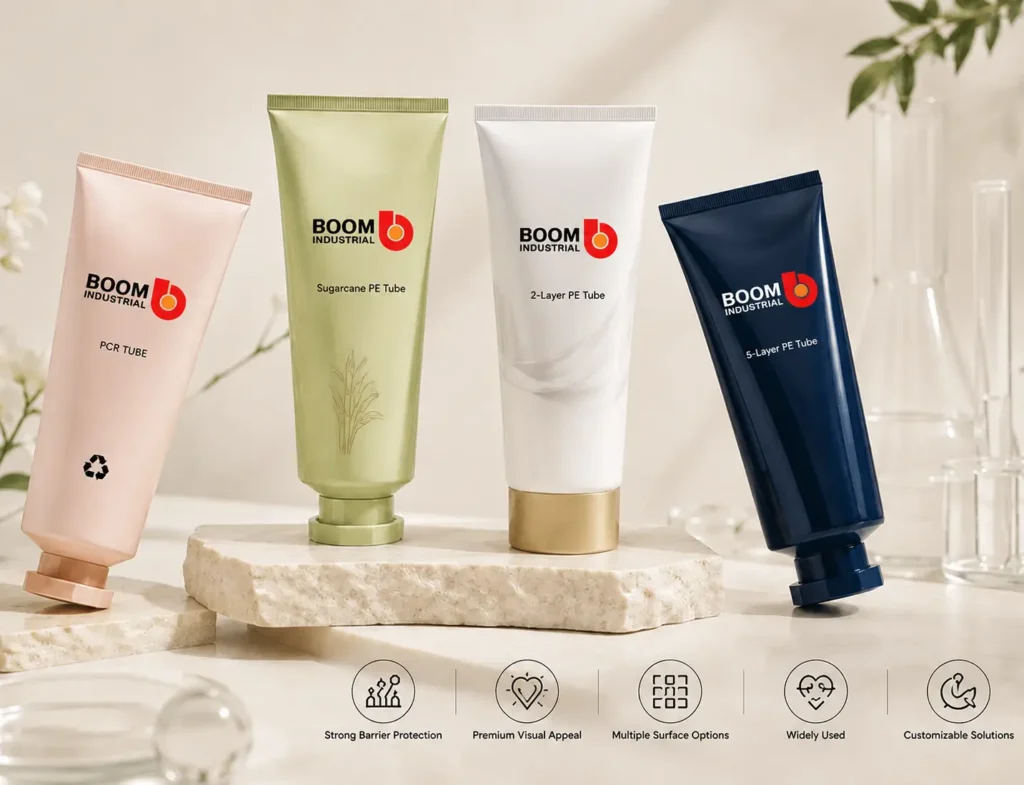

PE Tubes
Boom provides a comprehensive range of eco-friendly PE tube solutions, including 2-layer PE (2LPE) tubes, 5-layer PE (5LPE) tubes, PCR recycled plastic tubes, as well as bio-based sugarcane and wheat straw tubes. These sustainable packaging options are widely used in cosmetics, personal care, pharmaceuticals, as well as food and chemical industries.

PE Tubes
Boom provides a comprehensive range of eco-friendly PE tube solutions, including 2-layer PE (2LPE) tubes, 5-layer PE (5LPE) tubes, PCR recycled plastic tubes, as well as bio-based sugarcane and wheat straw tubes. These sustainable packaging options are widely used in cosmetics, personal care, pharmaceuticals, as well as food and chemical industries.
PE Tube Structure Diagrams
An Overview of PE Tube Tube Material Structures
PE Tube Structure Diagrams
An Overview of PE Tube Tube Material Structures
Standard PE tube thickness: 250 μm. For larger diameter tubes, 300 μm is commonly used. Custom thicknesses are available upon request.
Standard PE tube thickness: 250 μm. For larger diameter tubes, 300 μm is commonly used. Custom thicknesses are available upon request.

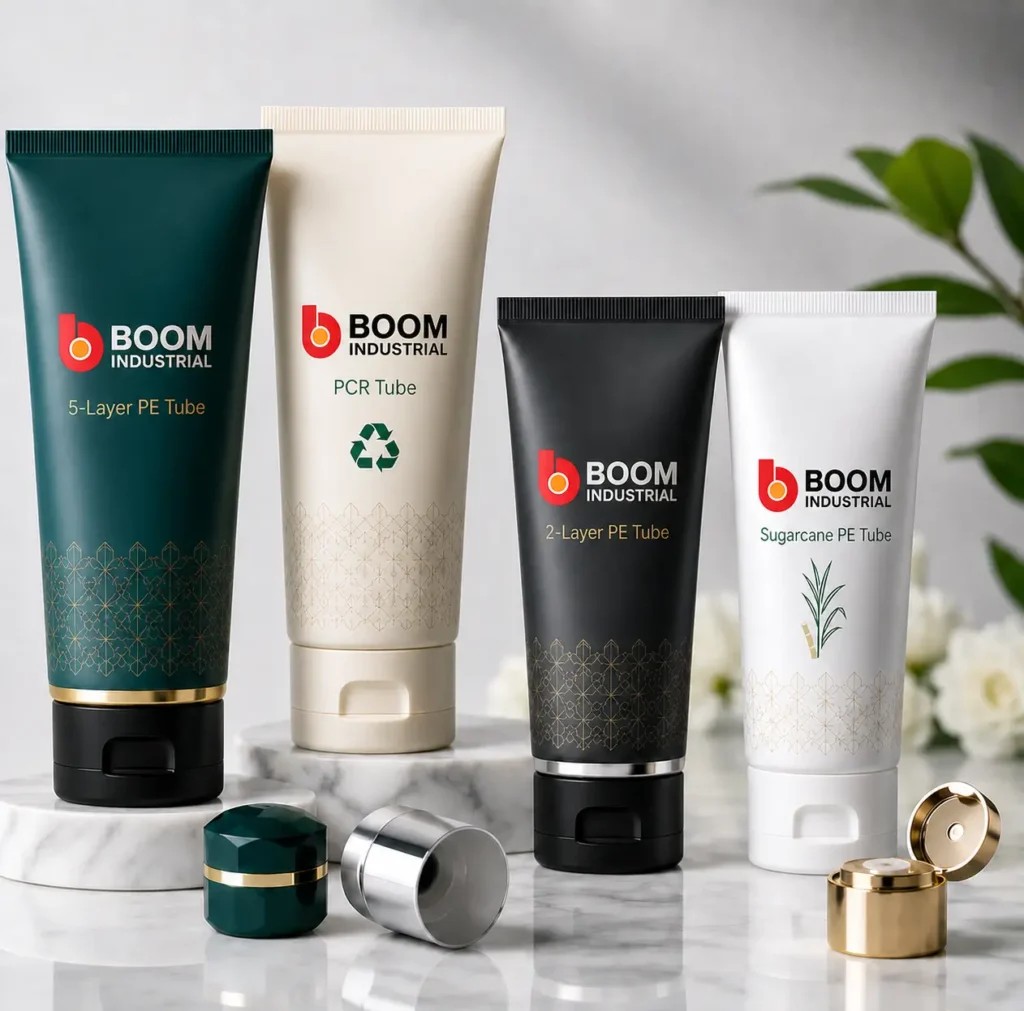

Key Advantages
Our multi-layer PE tubes offer excellent barrier properties and mechanical strength. The 5-layer PE structure provides enhanced protection, effectively extending product shelf life and improving stability.
PCR materials help reduce plastic consumption, while sugarcane and wheat straw tubes are derived from renewable resources, offering more sustainable packaging alternatives for modern brands.

Available in 2-layer and 5-layer structures for different barrier needs

5LPE high-barrier design to extend product shelf life

PCR recycled materials to reduce plastic usage and environmental impact

Bio-based sugarcane and wheat straw materials for renewable packaging solutions

Excellent flexibility and printability for customized branding designs

Key Advantages
Our multi-layer PE tubes offer excellent barrier properties and mechanical strength. The 5-layer PE structure provides enhanced protection, effectively extending product shelf life and improving stability.
PCR materials help reduce plastic consumption, while sugarcane and wheat straw tubes are derived from renewable resources, offering more sustainable packaging alternatives for modern brands.

Available in 2-layer and 5-layer structures for different barrier needs

5LPE high-barrier design to extend product shelf life

PCR recycled materials to reduce plastic usage and environmental impact

Bio-based sugarcane and wheat straw materials for renewable packaging solutions

Excellent flexibility and printability for customized branding designs
Tube Diameter / Body Length / Capacity Chart
Precisely Designed Tube Dimensions for Enhanced Packaging Compatibility.

13 Pipe diameter mm
| ml | mm | |
| 3 | —— | 43 |
| 5 | —— | 58 |

16 Pipe diameter mm
| ml | mm | |
| 5 | ———— | 45 |
| 10 | ———— | 73 |
| 15 | ———— | 101 |

19 Pipe diameter mm
| ml | mm | |
| 5 | ———— | 40 |
| 10 | ———— | 55 |
| 15 | ———— | 75 |
| 20 | ———— | 95 |
| 25 | ———— | 115 |

22 Pipe diameter mm
| ml | mm | |
| 10 | ———— | 48 |
| 15 | ———— | 65 |
| 20 | ———— | 81 |
| 25 | ———— | 95 |
| 30 | ———— | 108 |
| 35 | ———— | 122 |

25 Pipe diameter mm
| ml | mm | |
| 15 | ———— | 55 |
| 20 | ———— | 67 |
| 25 | ———— | 78 |
| 30 | ———— | 89 |
| 35 | ———— | 100 |
| 40 | ———— | 110 |
| 45 | ———— | 120 |
| 50 | ———— | 130 |

30 Pipe diameter mm
| ml | mm | |
| 25 | ———— | 65 |
| 30 | ———— | 74 |
| 35 | ———— | 81 |
| 40 | ———— | 88 |
| 45 | ———— | 96 |
| 50 | ———— | 105 |
| 60 | ———— | 120 |

35 Pipe diameter mm
| ml | mm | |
| 40 | ———— | 71 |
| 45 | ———— | 77 |
| 50 | ———— | 82 |
| 60 | ———— | 95 |
| 70 | ———— | 110 |
| 80 | ———— | 120 |
| 90 | ———— | 130 |
| 100 | ———— | 142 |

38 Pipe diameter mm
| ml | mm | |
| 50 | ———— | 78 |
| 60 | ———— | 88 |
| 70 | ———— | 98 |
| 80 | ———— | 109 |
| 90 | ———— | 117 |
| 100 | ———— | 127 |
| 120 | ———— | 147 |

40 Pipe diameter mm
| ml | mm | |
| 60 | ———— | 85 |
| 70 | ———— | 93 |
| 80 | ———— | 103 |
| 90 | ———— | 112 |
| 100 | ———— | 120 |
| 120 | ———— | 140 |
| 150 | ———— | 166 |

45 Pipe diameter mm
| ml | mm | |
| 80 | ———— | 86 |
| 90 | ———— | 94 |
| 100 | ———— | 105 |
| 120 | ———— | 124 |
| 150 | ———— | 140 |
| 180 | ———— | 159 |
| 200 | ———— | 173 |

50 Pipe diameter mm
| ml | mm | |
| 120 | ———— | 101 |
| 150 | ———— | 121 |
| 180 | ———— | 138 |
| 200 | ———— | 148 |
| 220 | ———— | 160 |
| 240 | ———— | 170 |
| 250 | ———— | 175 |

55 Pipe diameter mm
| ml | mm | |
| 180 | ———— | 120 |
| 200 | ———— | 130 |
| 220 | ———— | 140 |
| 240 | ———— | 150 |
| 250 | ———— | 155 |
| 300 | ———— | 180 |
| 350 | ———— | 192 |

60 Pipe diameter mm
| ml | mm | |
| 180 | ———— | 111 |
| 200 | ———— | 120 |
| 220 | ———— | 131 |
| 240 | ———— | 141 |
| 250 | ———— | 146 |
| 300 | ———— | 165 |
| 350 | ———— | 185 |
| 220 | ———— | 130 |
| 400 | ———— | 210 |

30 Pipe diameter mm
| ml | mm | |
| 25 | ———— | 68 |
| 30 | ———— | 77 |
| 35 | ———— | 84 |
| 40 | ———— | 91 |
| 45 | ———— | 99 |
| 50 | ———— | 108 |
| 60 | ———— | 123 |

35 Pipe diameter mm
| ml | mm | |
| 40 | ———— | 79 |
| 45 | ———— | 85 |
| 50 | ———— | 90 |
| 60 | ———— | 103 |
| 70 | ———— | 118 |
| 80 | ———— | 128 |
| 90 | ———— | 138 |

40 Pipe diameter mm
| ml | mm | |
| 60 | ———— | 89 |
| 70 | ———— | 97 |
| 80 | ———— | 107 |
| 90 | ———— | 116 |
| 100 | ———— | 124 |
| 120 | ———— | 144 |
| 150 | ———— | 170 |

50 Pipe diameter mm
| ml | mm | |
| 120 | ———— | 105 |
| 150 | ———— | 125 |
| 180 | ———— | 142 |
| 200 | ———— | 152 |
| 220 | ———— | 164 |
| 240 | ———— | 174 |
| 250 | ———— | 179 |
Tube Diameter / Body Length / Capacity Chart
Precisely Designed Tube Dimensions for Enhanced Packaging Compatibility.
Printing

8-Color Offset Printing
Multi-color high-precision printing for rich graphics and layered visuals Advantage: stable color / sharp details / mass production consistency

Silkscreen Printing
Ink is directly applied to the tube surface for bold visual impact Advantage: strong color / high adhesion / abrasion resistance

Hot Stamping (Gold / Silver / Rainbow)
Metallic foil transfer process for a premium packaging appearance Advantage: premium look / strong recognition / brand enhancement

Reverse UV Coating
Gloss and matte contrast to highlight design depth and key elements Advantage: visual depth / focus highlighting / refined finish

Matte Coating
Smooth matte surface finish for a soft premium appearance Advantage: elegant look / anti-fingerprint / minimalist style

Frosted Finish
Fine frosted texture for a unique tactile and visual effect Advantage: premium touch / strong differentiation / unique look

Glossy Coating
High-gloss surface finish for brighter and more vivid colors Advantage: strong impact / vibrant color / enhanced appeal

Labeling
Flexible labeling solution for fast branding and product updates Advantage: small batch friendly / cost flexible / quick change
Printing
Shoulder Type (Selectively Displayed)
Appearance Display


















Special Threads And Matching Caps Can Be Custom Molded; Tube Shoulder Injection Can Also Be
Developed Based On Specific Requirements.
Shoulder Type (Selectively Displayed)
Special Threads And Matching Caps Can Be Custom Molded; Tube Shoulder Injection Can Also Be Developed Based On Specific Requirements.
Cap Type (Selectively Displayed)

Octagonal Cap

Doctor Cap

Flat Cap (Glossy Finish)

Ribbed Cap

Screw Cap

Acrylic Cap
Flip-top caps can be equipped with a positioning function. Please contact us for details.
Cap Type (Selectively Displayed)
Flip-top caps can be equipped with a positioning function. Please contact us for details.
Tube Body Type
Tube Body Type
Flexible Tube Shape Designs to Meet Diverse Brand Packaging Needs.

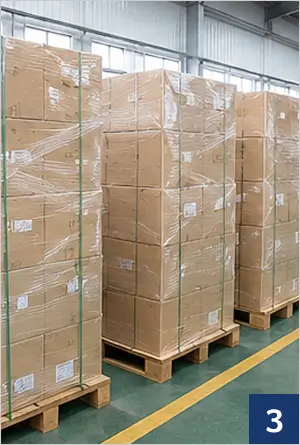

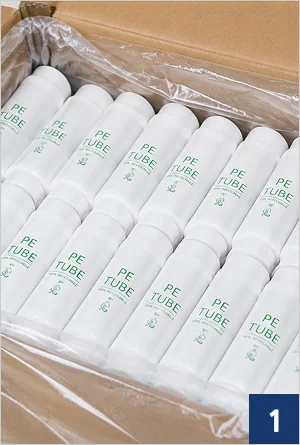

Packaging & Warehousing



Packaging & Warehousing

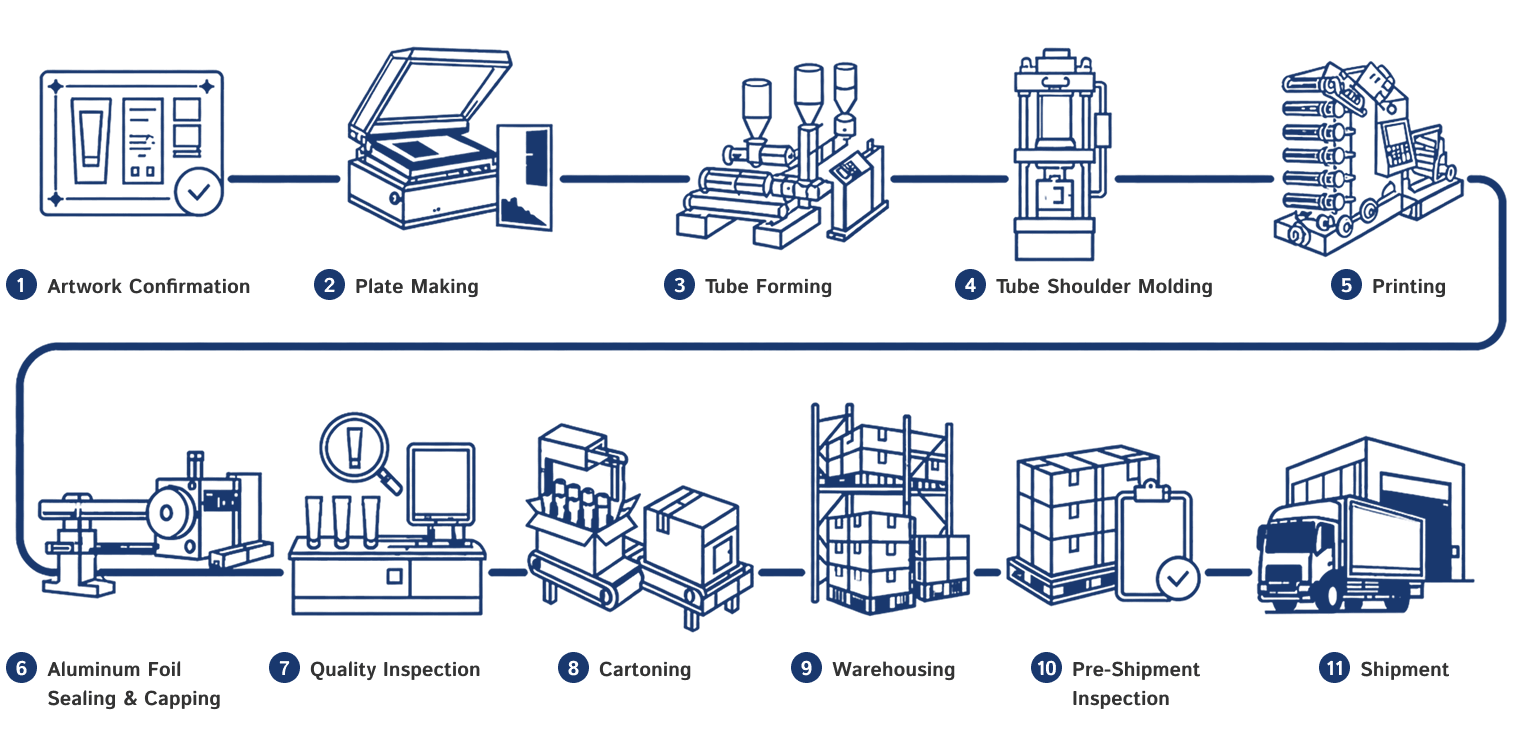

Production Flow Chart

Production Flow Chart

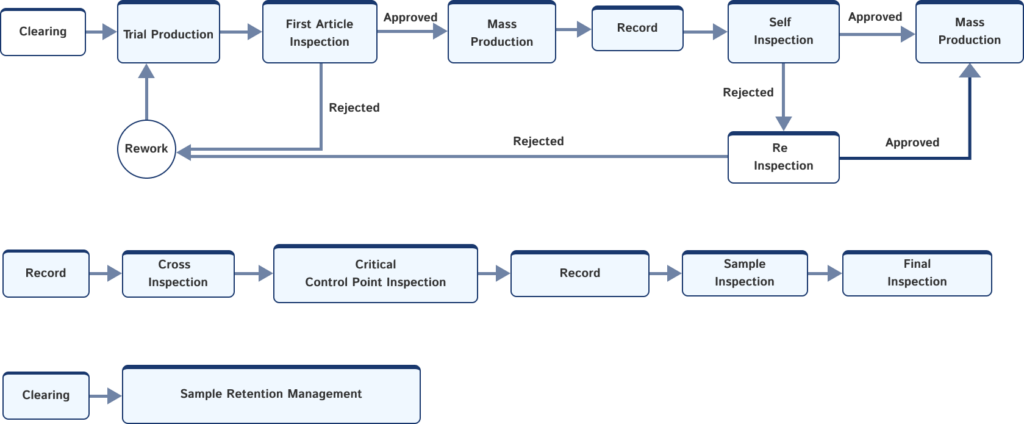

Quality Inspection Flow Chart

We implement an advanced quality management system and rigorous inspection procedures to ensure consistent product quality.
Our in-process quality control system includes:
First Article Inspection (FAI)
Self-Inspection
Cross-Inspection (Peer Inspection)
Critical Control Point (CCP) Inspection
Type Inspection
The Quality Control (QC) team is responsible for implementing first article inspections, conducting routine in-process inspections, and performing inspections at critical control points throughout production.In addition, QC conducts sampling inspections and testing every two hours to maintain process consistency and product quality.
Production operators are responsible for conducting self-inspections and cross-inspections during manufacturing, as well as identifying and segregating any non-conforming products.
The Quality Assurance (QA) team performs on-site audits and monitors the entire production process to ensure compliance with quality requirements.
Quality Inspection Flow Chart

We implement an advanced quality management system and rigorous inspection procedures to ensure consistent product quality.
Our in-process quality control system includes:
First Article Inspection (FAI)
Self-Inspection
Cross-Inspection (Peer Inspection)
Critical Control Point (CCP) Inspection
Type Inspection
The Quality Control (QC) team is responsible for implementing first article inspections, conducting routine in-process inspections, and performing inspections at critical control points throughout production.In addition, QC conducts sampling inspections and testing every two hours to maintain process consistency and product quality.
Production operators are responsible for conducting self-inspections and cross-inspections during manufacturing, as well as identifying and segregating any non-conforming products.
The Quality Assurance (QA) team performs on-site audits and monitors the entire production process to ensure compliance with quality requirements.
Product Showcase
Product Showcase
Explore Versatile PE Squeeze Tubes in Conventional and Sustainable Material Options

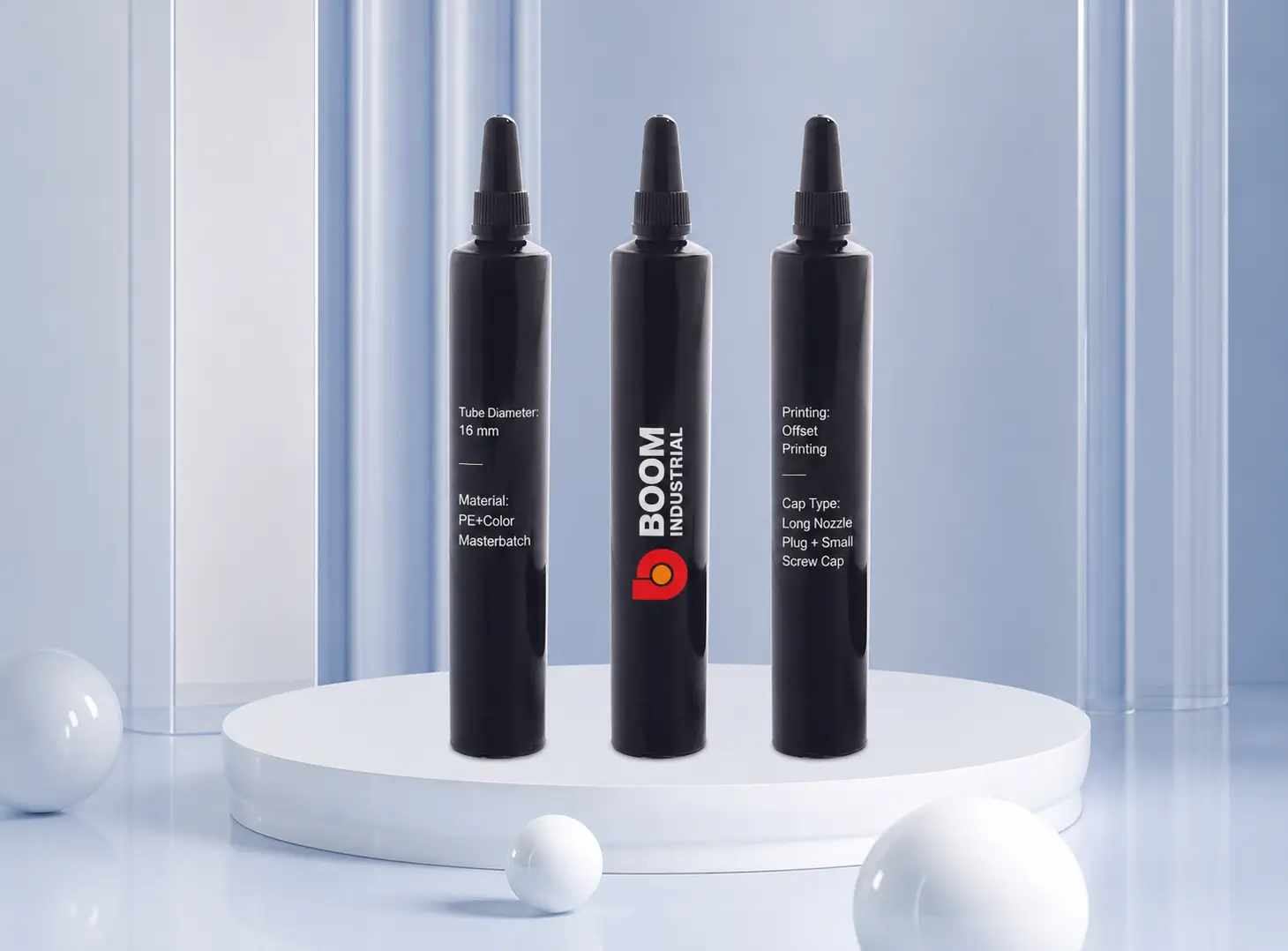

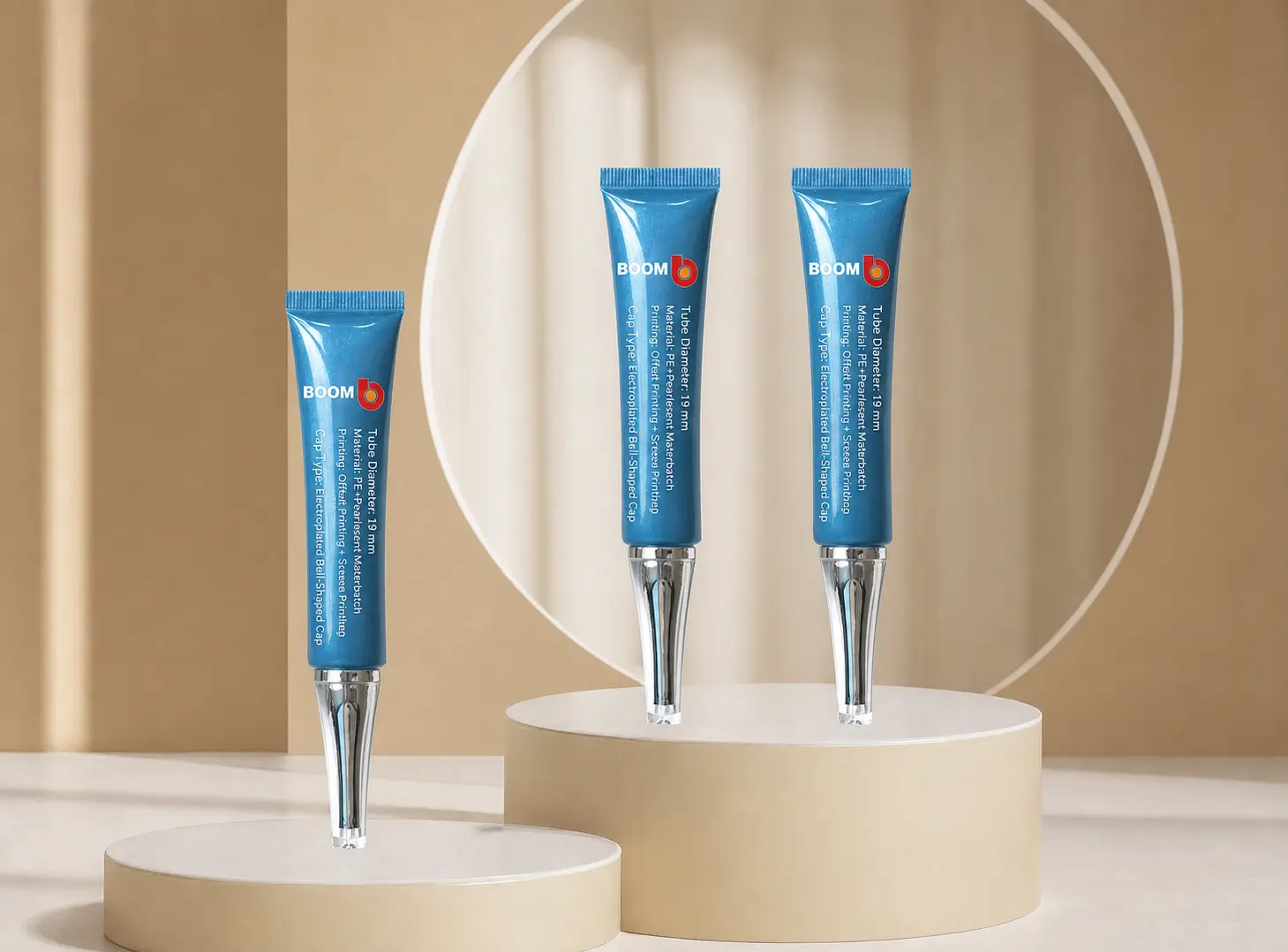

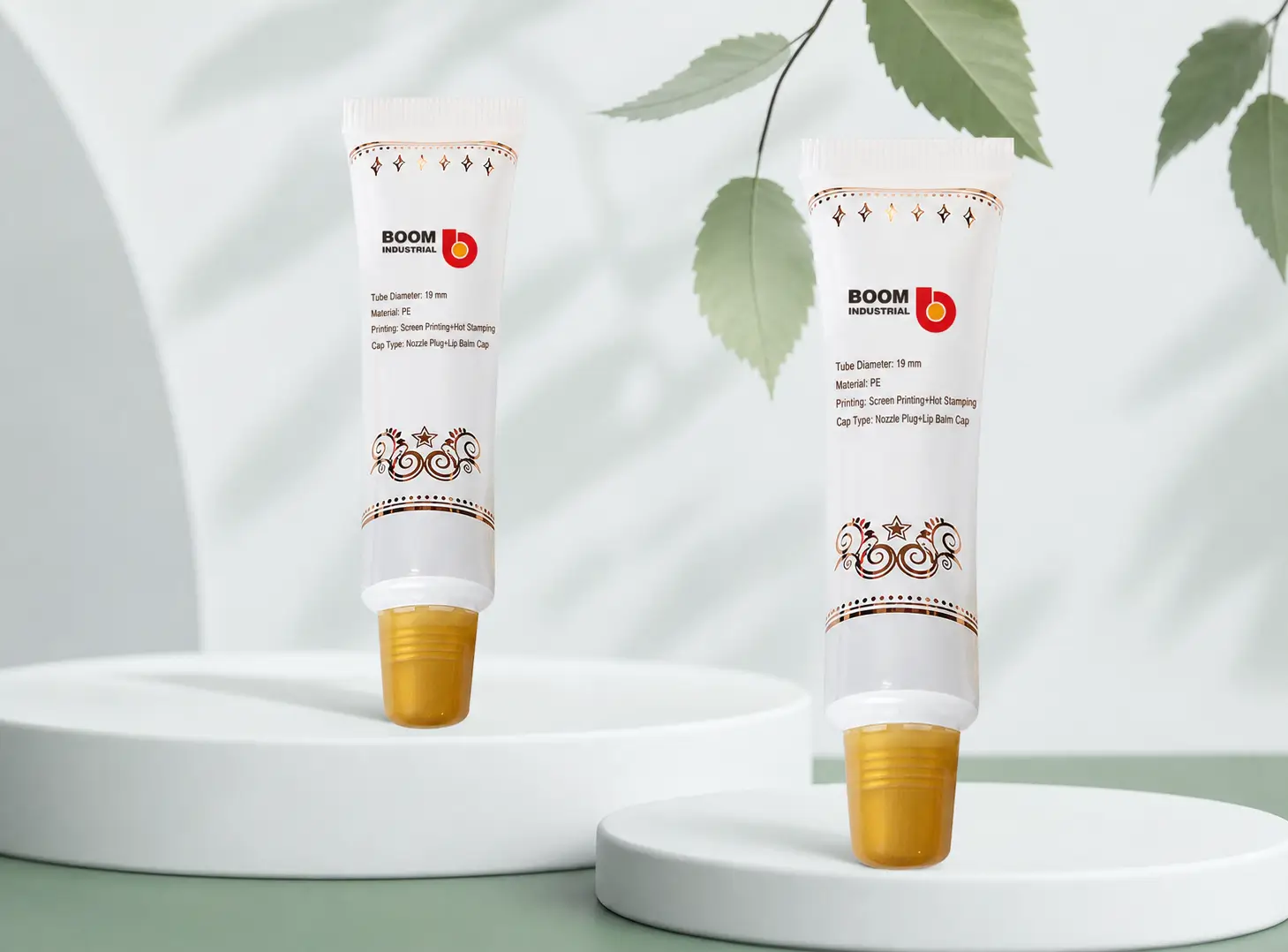

PE Tubes

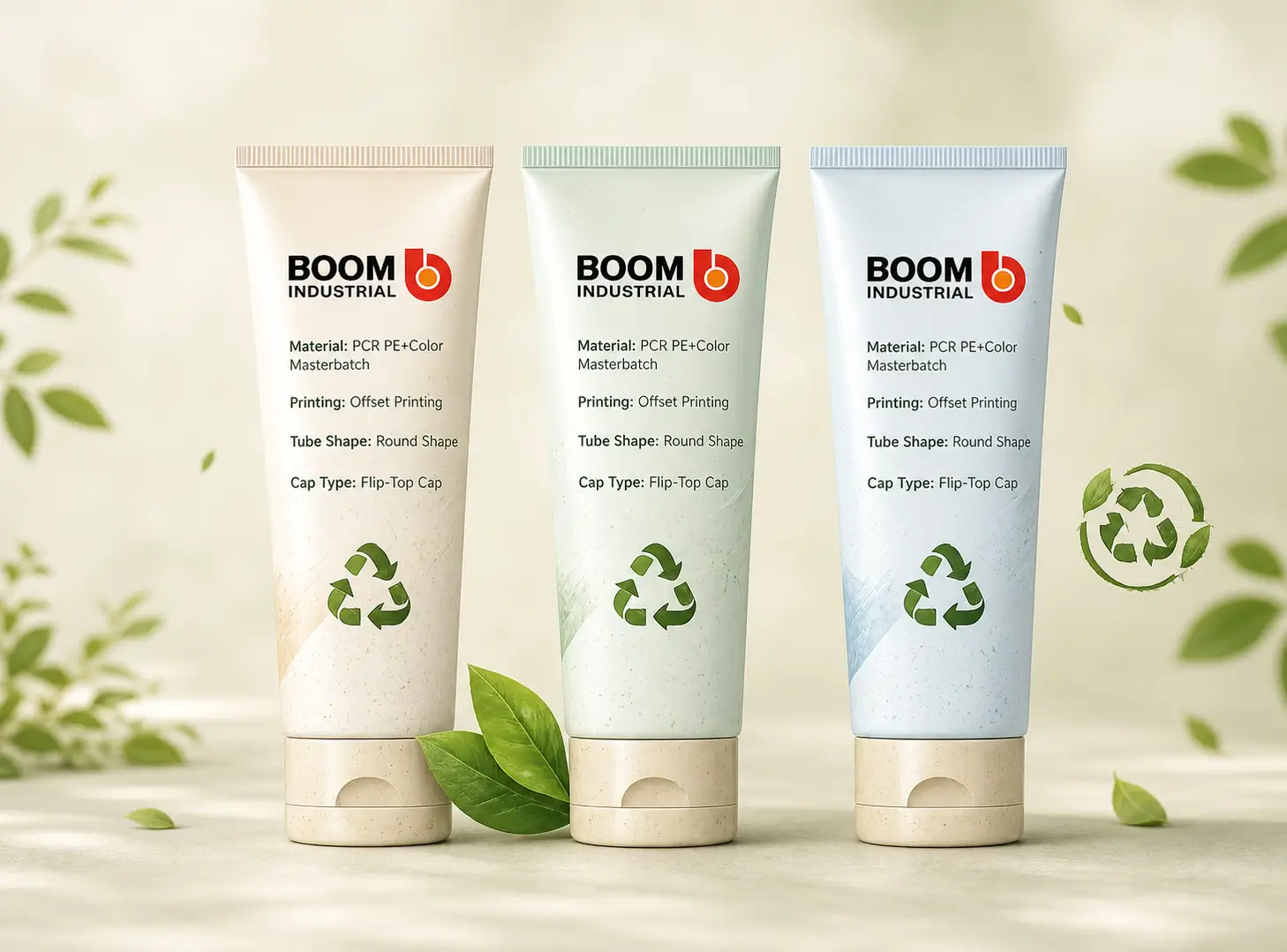

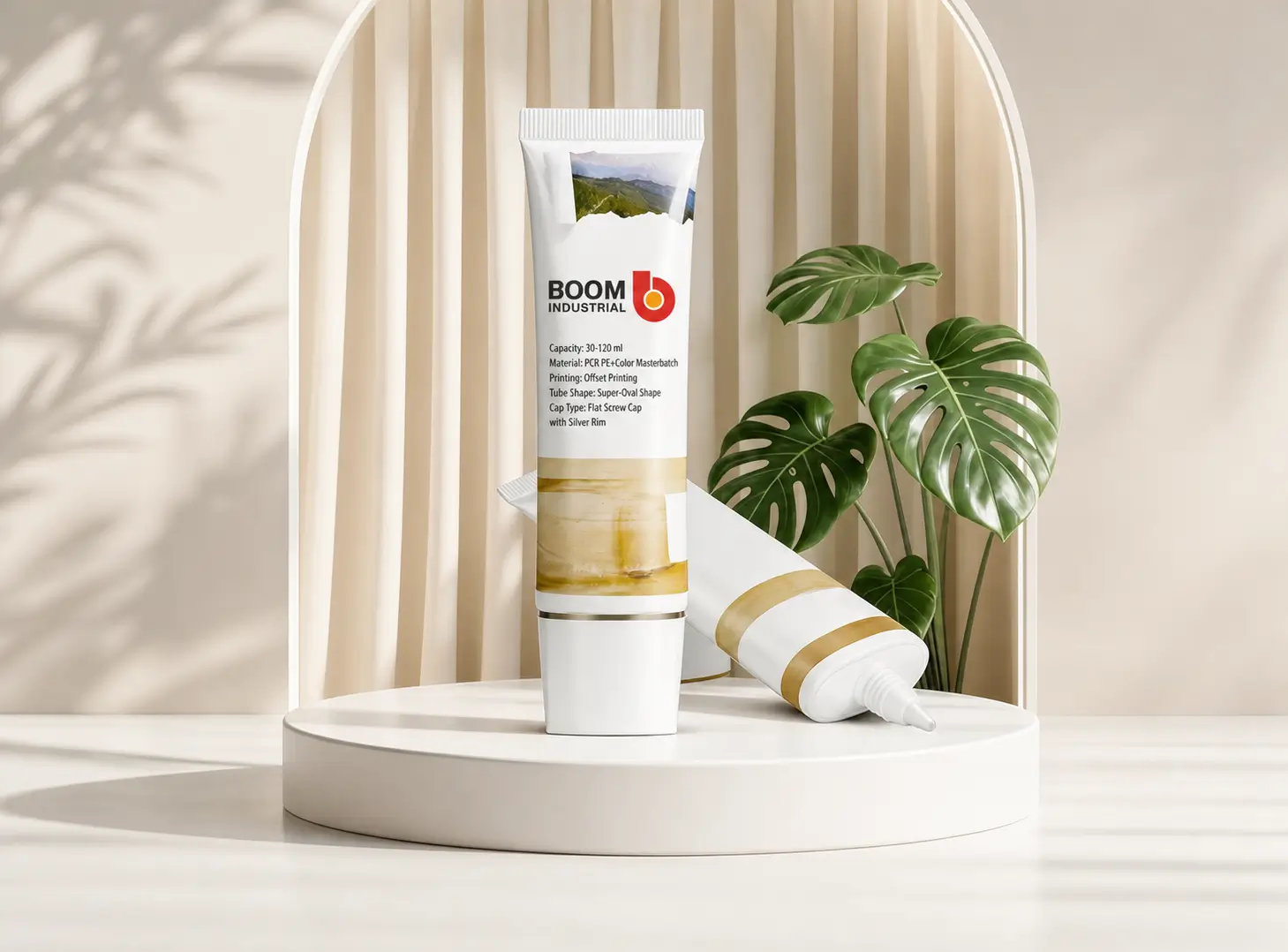

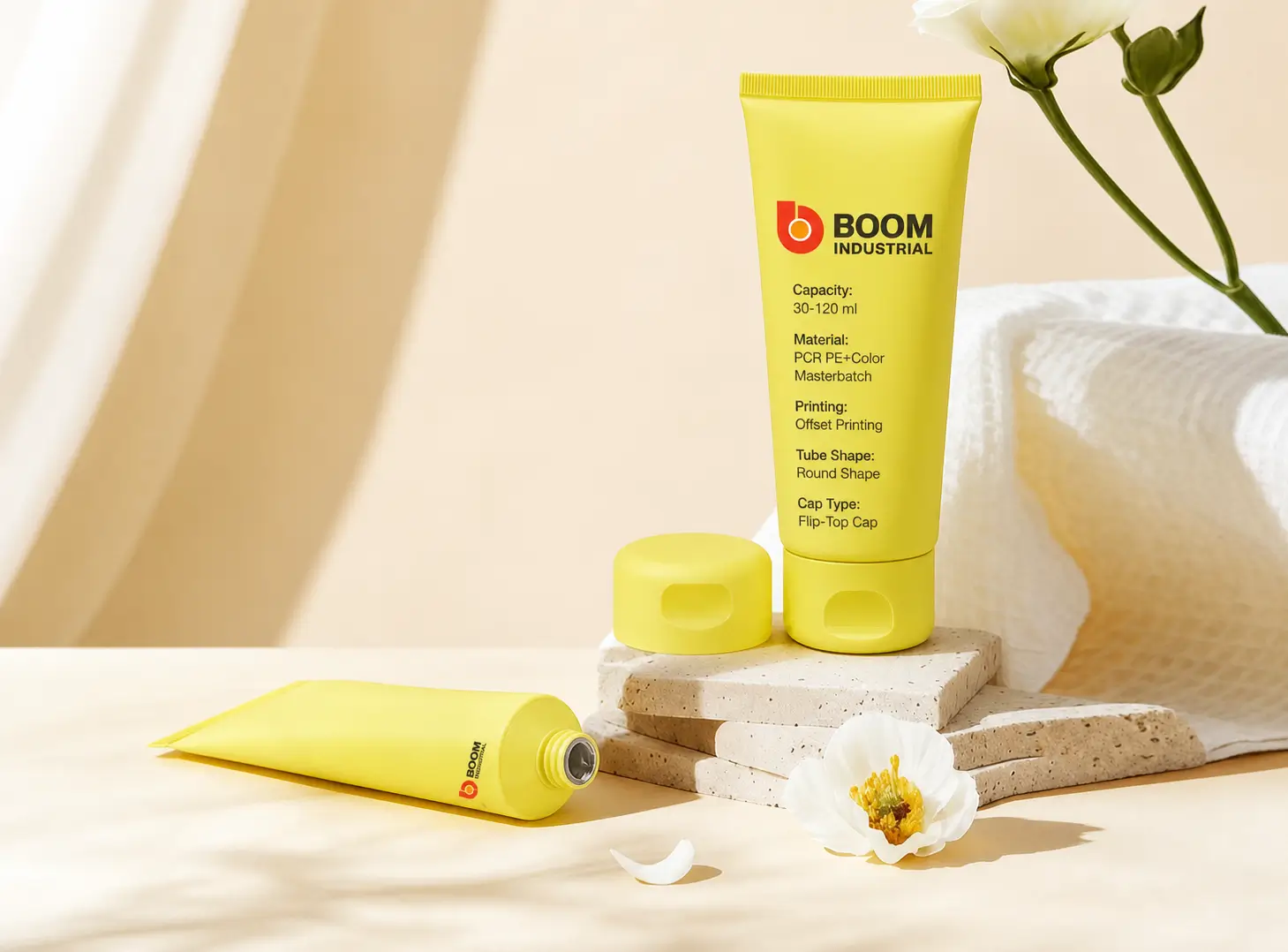

PCR Tubes

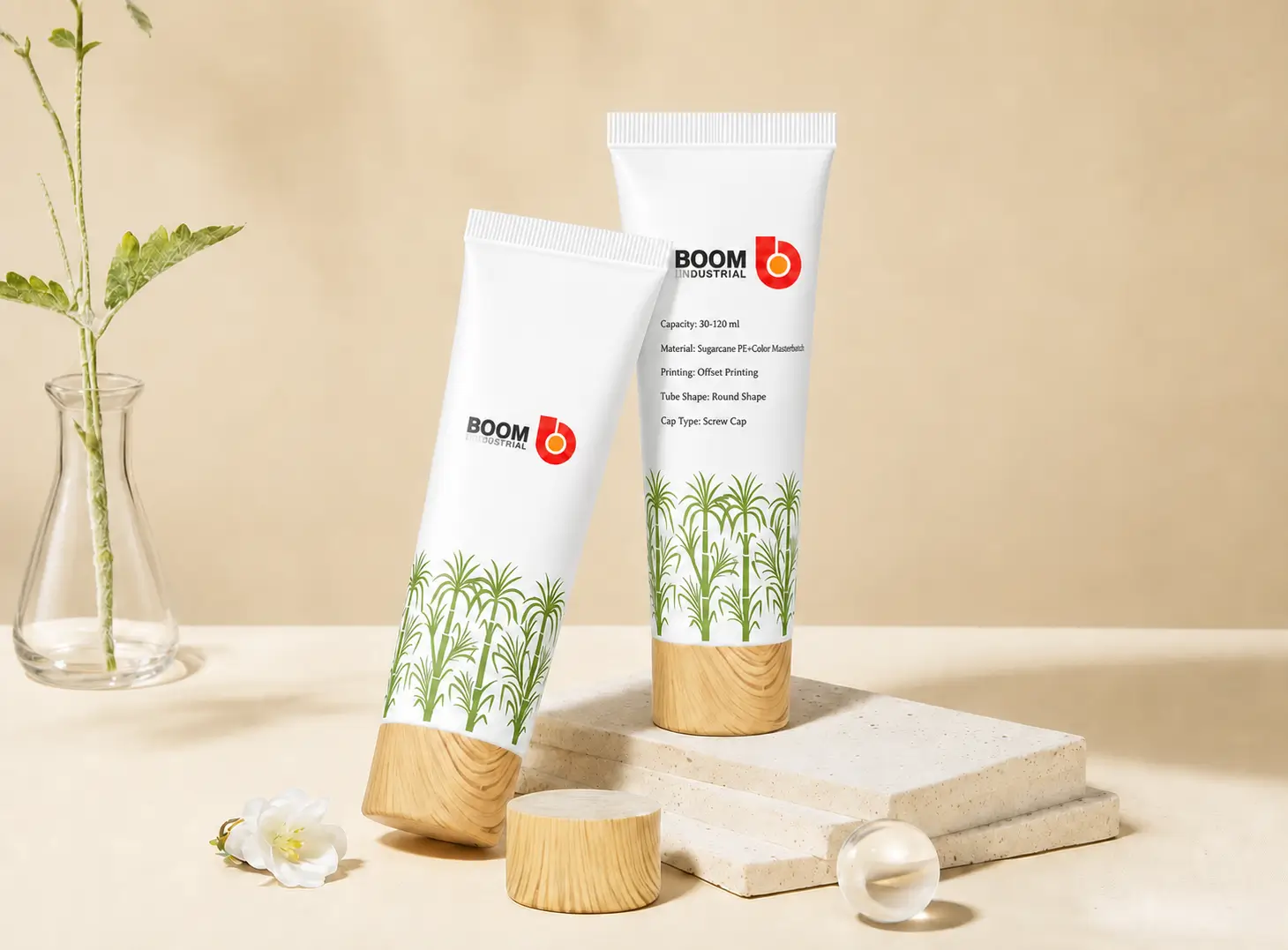

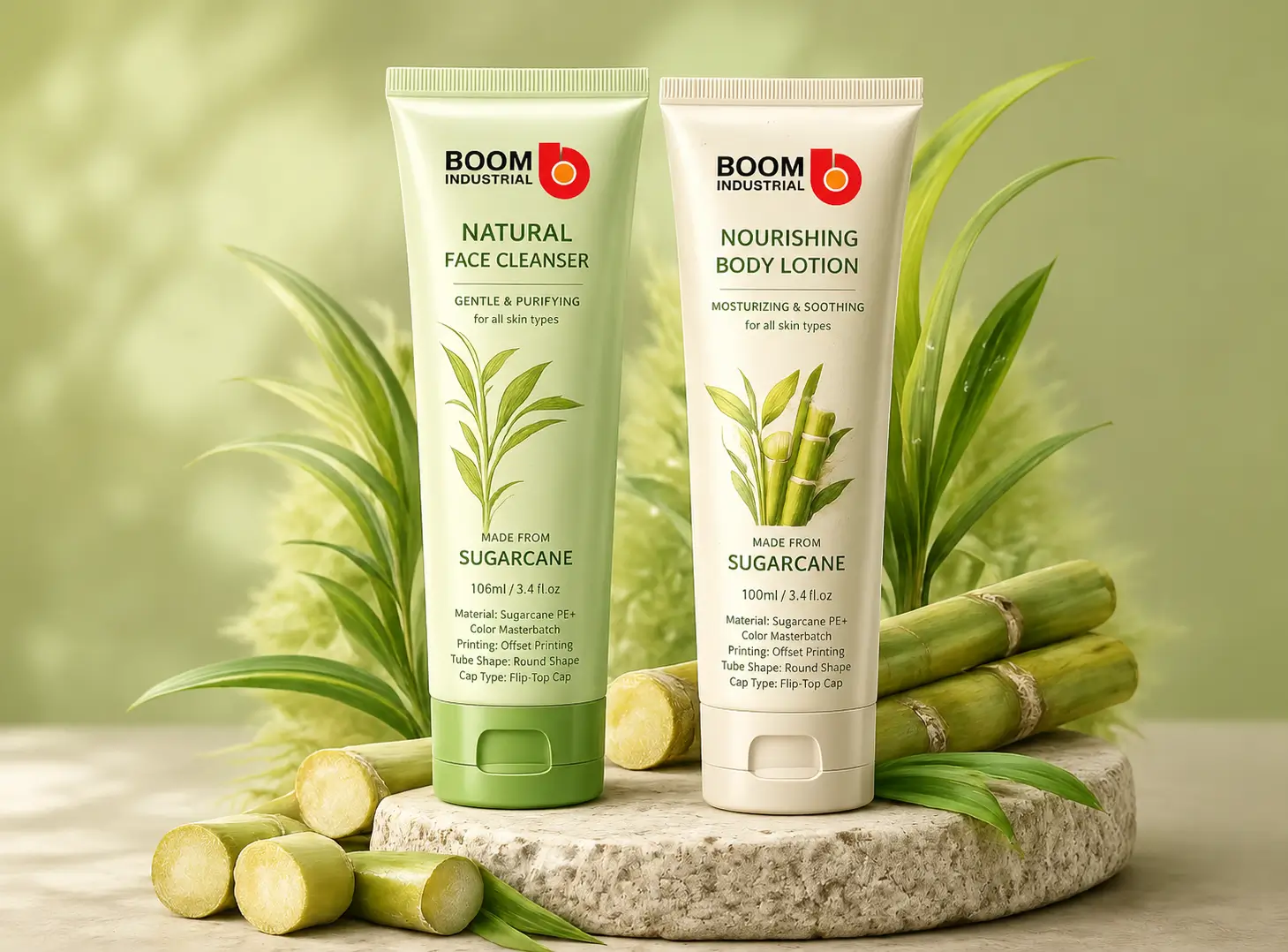

Sugarcane PE Tubes

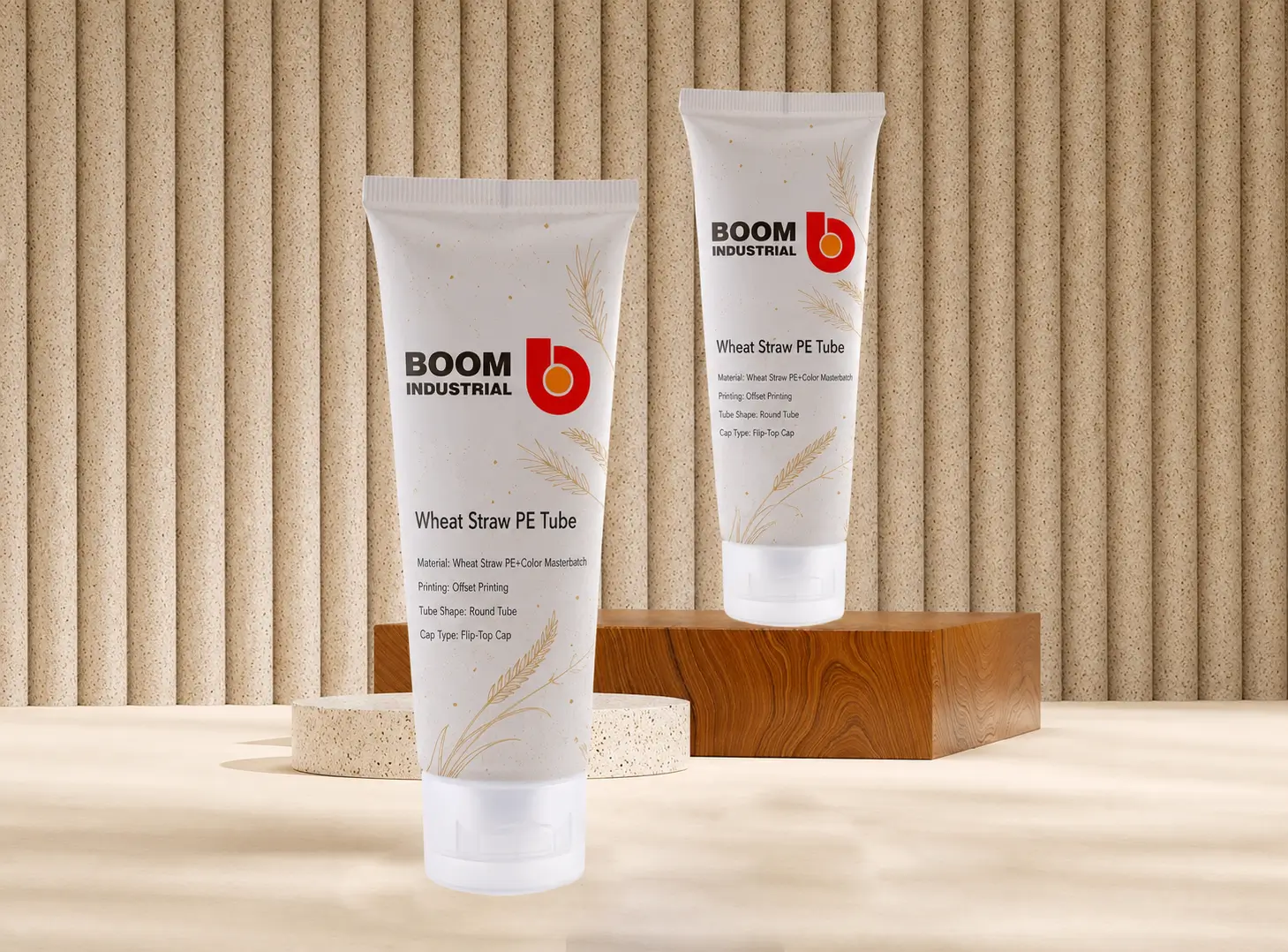

Wheat Straw PE Tubes
Sugarcane PE Tubes
Wheat Straw PE Tubes
Frequently Asked Questions
Answers to Questions About Materials, Manufacturing, Customization, Applications and More.
PE tubes are pliable packaging containers manufactured from polyethylene. They are highly favored across industries for their outstanding squeezability, long-lasting durability, and economic value.
PE tubes are incredibly versatile and work perfectly for packaging face creams, body lotions, cleansers, sunscreens, shampoos, hair conditioners, edible pastes, medical ointments, and chemical pastes.
We provide a wide array of premium printing and finishing technologies to elevate your brand. These include offset and silkscreen printing, hot stamping, reverse UV coatings, matte/frosted/glossy varnishes, and custom labeling.
PE is made from virgin plastic resin, whereas PCR is manufactured using recycled post-consumer plastics. Conversely, sugarcane and wheat straw tubes are eco-friendly, bio-based sustainable packaging materials.
Certainly. Boom supplies specialized tubes made from safe, compliant materials that are perfectly suited for food pastes, condiments, pharmaceutical gels, and medical creams.
Yes, they are. Boom offers comprehensive bespoke services, allowing you to tailor the tube diameter, cap design, barrier structure, color, surface decoration, and printing solutions to your exact specifications.
These tubes are exceptionally lightweight, adaptable, and fully customizable. They can be tailored with various dimensions, closures, printing methods, and surface treatments, making them a perfect fit for cosmetic, food, pharmaceutical, and chemical applications.
Absolutely. Boom delivers end-to-end customization options, allowing you to personalize the size, diameter, tint, cap design, material thickness, and exterior finish across our PE, PCR, sugarcane, and wheat straw tube lines.
Yes, especially our mono-material PE and post-consumer recycled (PCR) tubes. However, final recyclability depends on the structural design, the type of cap used, and the capabilities of your local recycling facilities.
Yes. Both PE and PCR tubes provide exceptional barrier properties and leak-proof performance, making them ideal packaging solutions for sunscreens, sunblocks, and after-sun lotions.
Yes. By combining advanced techniques like 8-color offset printing, silk screening, hot foil stamping (in gold, silver, or rainbow colors), reverse UV, diverse surface finishes (matte, frosted, or high-gloss), elegant labeling, and premium cap designs, our tubes deliver a sophisticated and luxurious visual impact.
To receive an accurate, customized quote, please supply your requirements for tube capacity, diameter, material structure, cap style, artwork design, desired surface finish, order quantity, and shipping destination. Please note that different sectors—such as cosmetics, food, pharmaceuticals, and industrial applications—may necessitate specific tube structures and barrier solutions tailored to their unique needs.
